Home > Software & Online Service > (1 Year Subscription) IMMO ByPass Software - An Online Database of ECU Files and Repair Solutions Dedicated to Engine Control Units (ECUs)
  • (1 Year Subscription) IMMO ByPass Software - An Online Database of ECU Files and Repair Solutions Dedicated to Engine Control Units (ECUs)
1/1
  • (1 Year Subscription) IMMO ByPass Software - An Online Database of ECU Files and Repair Solutions Dedicated to Engine Control Units (ECUs)
Share:

(1 Year Subscription) IMMO ByPass Software - An Online Database of ECU Files and Repair Solutions Dedicated to Engine Control Units (ECUs)

SKU:
0.0 (0)
0 Sold
$339.00 $0.00
Immo Bypass database contains: ECU files, Pictures of ECU pinouts and wiring diagrams, Vehicle and ECU informations, and the TOOLBOX which can be used for calculate and edit ecu/tcu/ccm/bcm2 values, and Alfa Romeo • Fiat • Lancia PIN+KEY IDs calculating, all car brands immo off in flash and all car brands ecu checksum calculation...
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Model:
    New User
    Renew
Quantity:
Add to Favorites (0)
  • (1 Year Subscription) IMMO ByPass Software - An Online Database of ECU Files and Repair Solutions Dedicated to Engine Control Units (ECUs)
  • (1 Year Subscription) IMMO ByPass Software - An Online Database of ECU Files and Repair Solutions Dedicated to Engine Control Units (ECUs)
1/1
  • (1 Year Subscription) IMMO ByPass Software - An Online Database of ECU Files and Repair Solutions Dedicated to Engine Control Units (ECUs)
  • Description
  • Contact :

IMMO BYPASS SOFTWARE IS THE BIGGEST IMMO OFF SOLUTIONS DATABASE IN THE WORLD DEVELOPED BY CARLABIMMO TEAM


Bring the biggest database of IMMO OFF files to your workshop!


CARLABIMMO IMMO BYPASS SOFTWARE FEATURES

  • Thousands of repair solutions.
  • Tested and working files only.
  • On-demand file modifications.
  • No tokens - unlimited access.
  • Low price - 12-month access.
  • Free updates during access.
  • More than 15000 solutions available for your workshop are available at any time on PC as well as on companion Android and iOS apps!

Immo Bypass database contains:

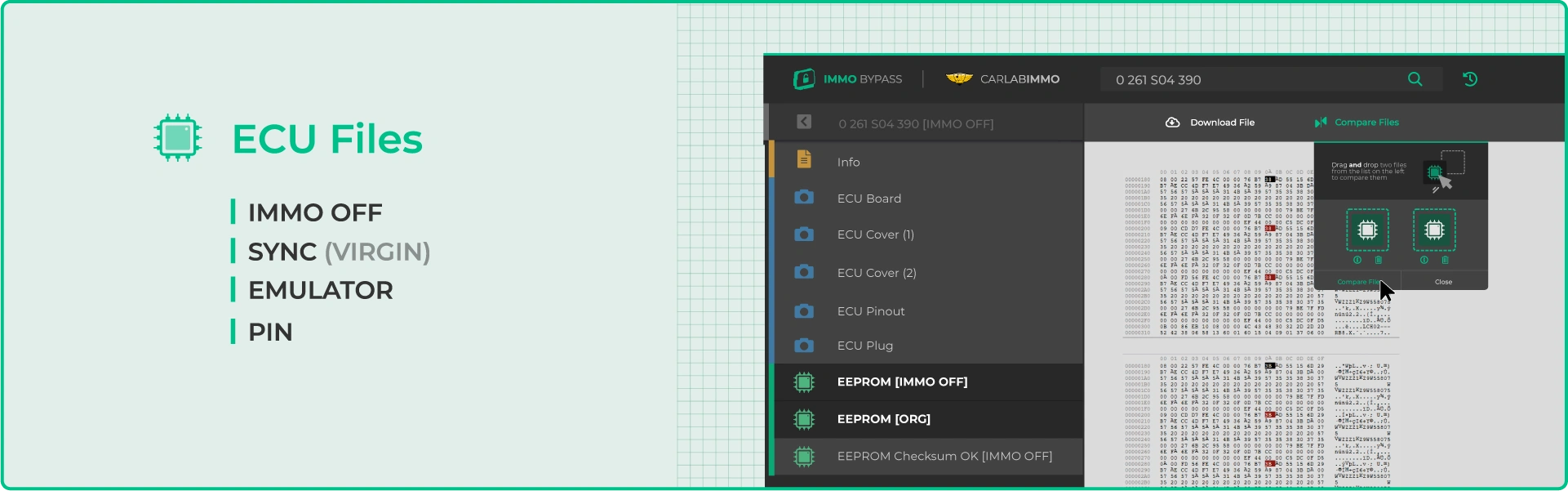

1. ECU Files

Thousands of tested working dumps that you can download and use in your ECU. ECU files are the core of Immo Bypass. Each solution consists of files - original and modified dumps that can be downloaded and programmed into your ECU.


Immo Bypass contains the following file types:

Immo OFF


Compare two selected ECU files: lmmo Bypass lets you compare any two files from the database and marks the differences
between them

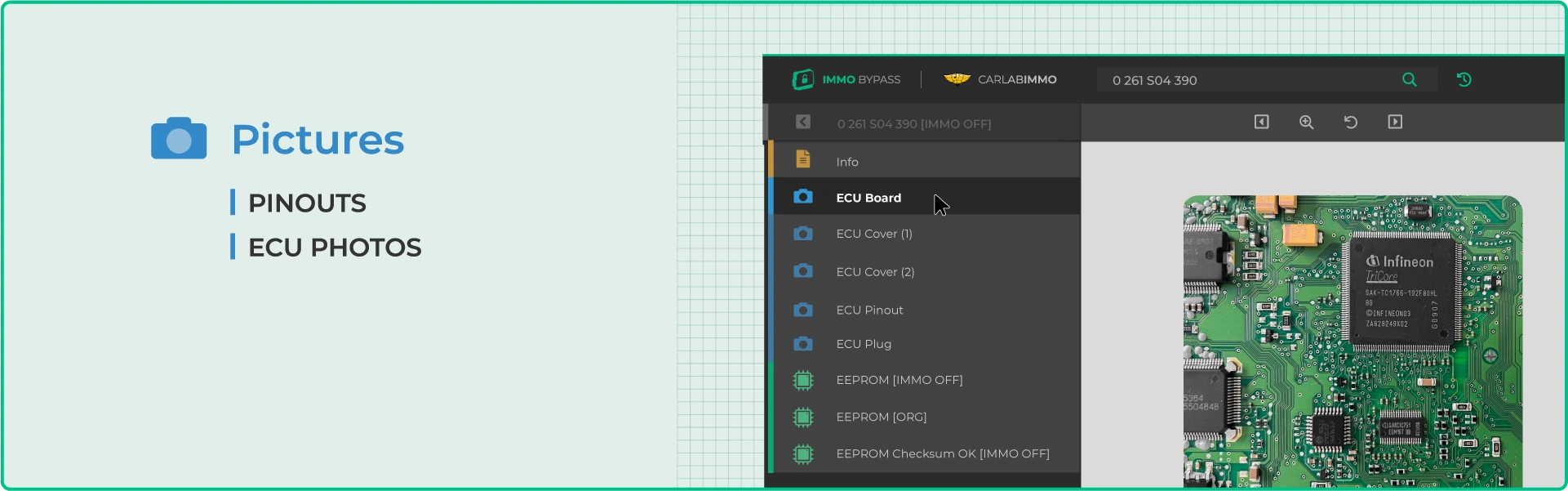

2. Pictures

Detailed photos of ECUs and other components, readable pinouts and wiring diagrams. Detailed pictures and wiring diagrams of every ECU constitute a large portion of our database. Tens of thousands of photos make Immo Bypass undoubtedly the biggest ECU catalogue of all time!


Components photos

High quality photos of ECUs, memories, plugs and other components.

Pinouts & Wiring diagrams

Tested and easy-to-read pinouts for thousands of ECUs in one place. Sounds helpful, right?

Software screenshots

If a solution requires using a third-party software, we will show you how to use it on screenshots.

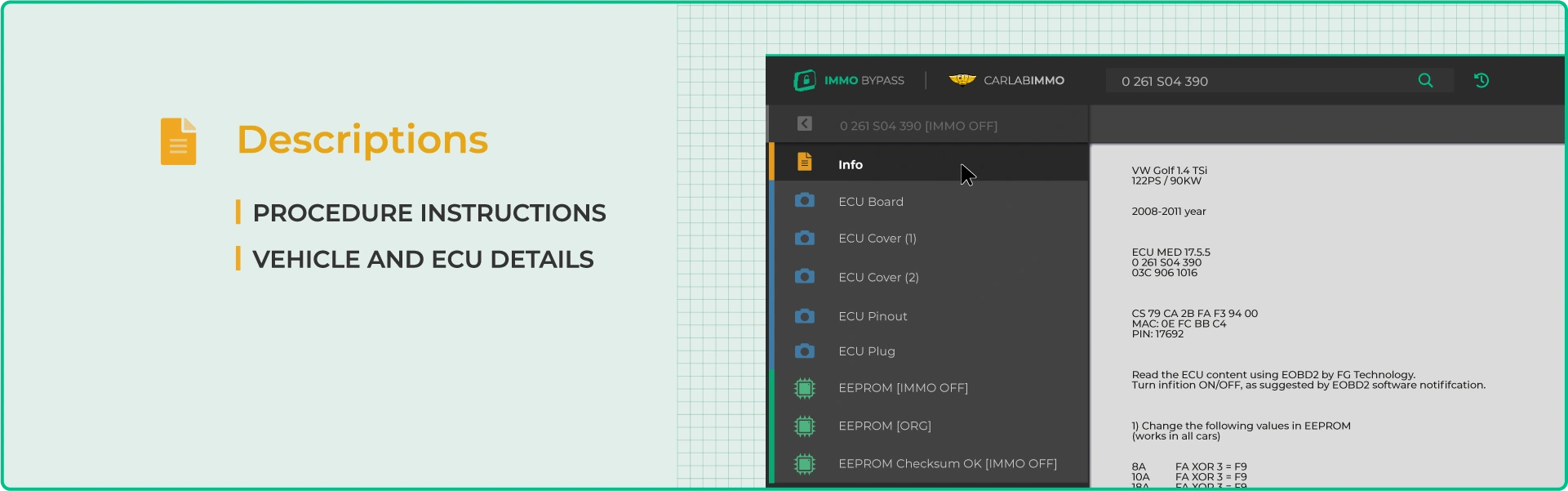

3. Descriptions

We provide text instructions that will guide you through the procedures. You will also find car and ECU information included. You will never get lost in the procedures thanks to our step-by-step instructions.


Procedure descriptions

Every solution contains a detailed description to make your work as easy and smooth as possible!

Vehicles & ECU information

Most of ECUs in our database are well described and connected to a specific car where it is mounted.

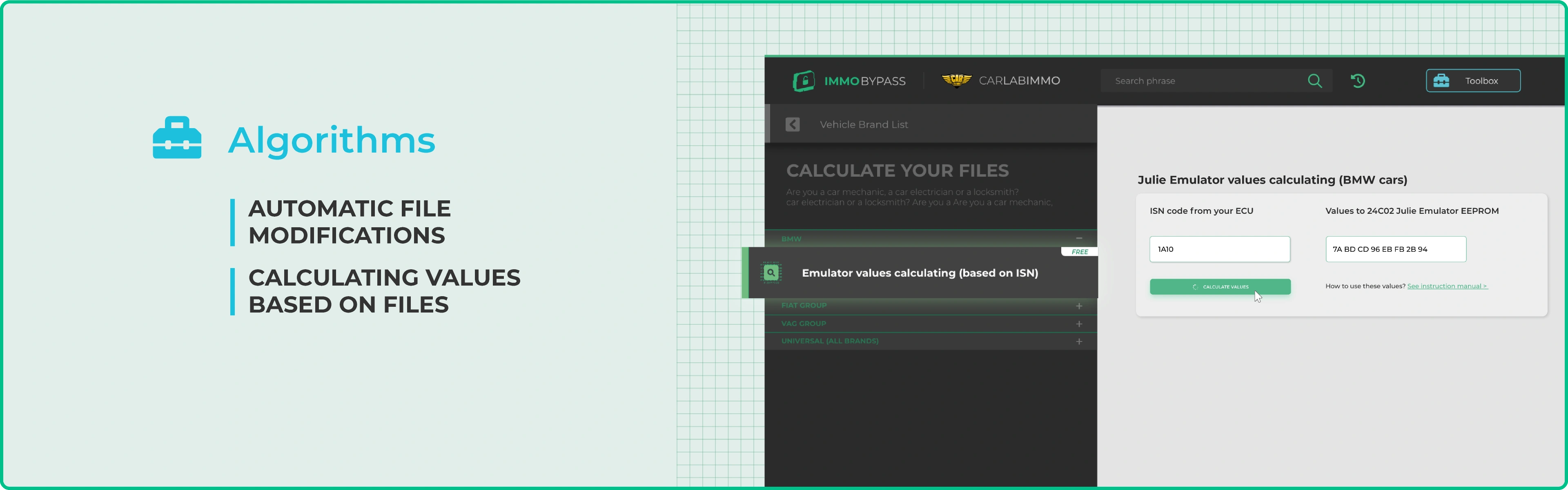

4. TOOLBOX



Toolbox is a set of algorithms we want to share with you and give under your command.

Immo Bypass subscription lets you use these tools with no limits. Some of them are available for free even with DEMO license!

IMMO BYPASS + TOOLBOX

Car Brand

Function

Description
SUPPORTED UNITS

VIDEOS

BMW

Julie Emulator values calculating

 Enter the ISN from your ECU > Get values for Julie Emulator’s EEPROM
Audi • Seat • Skoda • Volkswagen

ECU Values Calculator (WFS6)

 Upload FLASH and EEPROM file of your ECU > Read VIN1, VIN2, MAC, POWER CLASS and FAZIT | Immo Type automatically detected!
Bosch EDC17 • Bosch ME17 • Bosch MED17
Audi • Seat • Skoda • Volkswagen

ECU Values Editor (WFS6)

 Upload FLASH and EEPROM file of your ECU > Read VIN, CS, MAC and POWER CLASS values | Immo Type automatically detected! Bosch EDC17 • Bosch ME17 • Bosch MED17
Audi • Seat • Skoda • Volkswagen

ECU Values Calculator (WFS5)

 Upload FLASH and EEPROM file of your ECU > Read VIN, CS, MAC and POWER CLASS value | Immo Type automatically detected! Bosch EDC17 • Bosch ME17 • Bosch MED17
Audi • Seat • Skoda • Volkswagen

ECU Values Editor (WFS5)

 Upload FLASH and EEPROM file of your ECU > Read and Edit VIN, CS, MAC ad POWER CLASS values | Immo Type automatically detected! Bosch EDC17 • Bosch ME17 • Bosch MED17
Audi • Seat • Skoda • Volkswagen

ECU Values Calculator (WFS4)

 Upload EEPROM file of your ECU > Get a readout of the CS, MAC, PIN and VIN values Bosch EDC17 • Bosch ME17 • Bosch MED17
Audi • Seat • Skoda • Volkswagen

ECU Values Editor (WFS4)

 Upload EEPROM file of your ECU > Read and freely modify any values of CS, MAC, PIN and VIN. Bosch EDC17 • Bosch ME17 • Bosch MED17
Audi • Seat • Skoda • Volkswagen

IMMO OFF in EEPROM (WFS6 + WFS5 + WFS4)

 Automatically modify your EEPROM content to remove the immobiliser. Bosch EDC17 • Bosch ME17 • Bosch MED17
Audi • Seat • Skoda • Volkswagen

ECU Values Calculator (Continental Simos 18)

 Read the CS, MAC and POWER CLASS values from the FLASH and EEPROM files of your ECU. Continental Simos 18
Audi • Seat • Skoda • Volkswagen

ECU Values Editor (Continental Simos 18)

 Read and freely change the CS, MAC and POWER CLASS values from the FLASH and EEPROM files of your ECU. Continental Simos 18
Audi • Seat • Skoda • Volkswagen

ECU Values Calculator (Continental Simos PCR2.1)



 Read the CS, MAC and POWER CLASS values from the FLASH and EEPROM files of your ECU. Continental Simos PCR2.1
Audi • Seat • Skoda • Volkswagen

ECU Values Editor (Continental Simos PCR2.1)



 Read and freely change the CS, MAC and POWER CLASS values from the FLASH and EEPROM files of your ECU. Continental Simos PCR2.1
Audi • Seat • Skoda • Volkswagen

TCU Values Calculator



 Upload FLASH and EEPROM file of your ECU > Read VIN, CS, MAC and POWER CLASS values | TCU Type automatically detected! DQ200 (MQB / MQB Gen. 2) • DQ250 (MQB) • VL381 • DL501
Audi • Seat • Skoda • Volkswagen

TCU Values Editor



 Upload FLASH and EEPROM file of your ECU > Read and Edit VIN, CS, MAC and POWER CLASS values | TCU Type automatically detected! DQ200 (MQB / MQB Gen. 2) • DQ250 (MQB) • VL381 • DL501
Volkswagen Passat B6 2007+

CCM (Comfort Control Module) Values Calculator

 Upload EEPROM file of your CCM > Read VIN, CS, PIN, MAC, POWER CLASS and KEYS values CCM (Comfort Control Module)
Volkswagen Passat B6 2007+

CCM (Comfort Control Module) Values Editor

 Upload EEPROM file of your CCM > Read and Edit VIN, CS, PIN, MAC, POWER CLASS and KEYS values CCM (Comfort Control Module)
AUDI

BMC2 (Body Control Module) Values Calculator

 Upload EEPROM + FLASH file of your BMC2 > Read VIN, CS, MAC, POWER CLASS and KEYS values All cars equipped with BCM2. This module has to be equipped with:
- 95320 + NEC70F3239 / NEC70F3380 / NEC70F3381
OR
- NEC70F3381 / NEC70D3634 (with eeprom)
Audi

BMC2 (Body Control Module) Values Editor

 Upload EEPROM + FLASH file of your BMC2 > Read and Edit VIN, CS, MAC, POWER CLASS and KEYS values All cars equipped with BCM2. This module has to be equipped with:
- 95320 + NEC70F3239 / NEC70F3380 / NEC70F3381
OR
- NEC70F3381 / NEC70D3634 (with eeprom)
Alfa Romeo • Fiat • Lancia

PIN + KEY IDs calculating



 Upload EEPROM or EEPROM + MPC from your BSI > Get the PIN and up to 10 key IDs

ECU:

Delphi BSI (with black plug) | 70F3237 + 93C86 memories
Delphi BSI (with grey cover) | 70f3379 + crypted 93C86 memories
Delphi BSI (with blue plug) | 70F3633 memory
All car brands

IMMO OFF in FLASH

 Automatically modify your ECU FLASH content to remove the immobiliser.

Bosch EDC17 • Bosch ME17 • Bosch MED17 • Bosch MEV17
All car brands

ECU Checksum Calculating

 Automatically calculates the checksum of your ECU.

Bosch EDC17 • Bosch ME17 • Bosch MED17 • Bosch MEV17


We are dedicated to providing excellent support and assistance. If you have any questions, concerns, or inquiries, please don't hesitate to reach out to us. Our team is here to help!
Email: info@todiag.com
Whatsapp: +86-15889387385
Skype: ssss.hong
Live Chat: Visit our website and click on the live chat option to chat with Oliver Liu in real-time.
