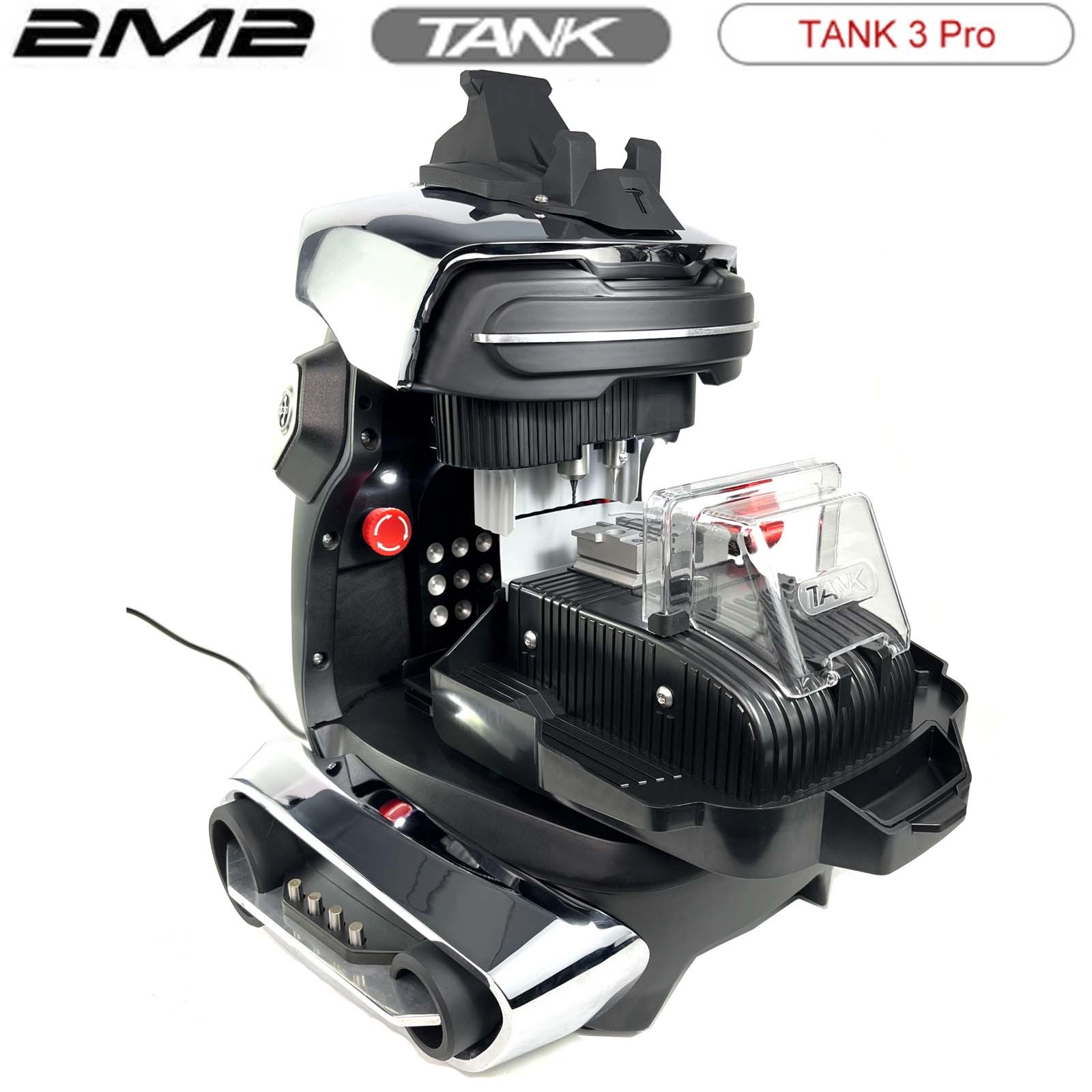

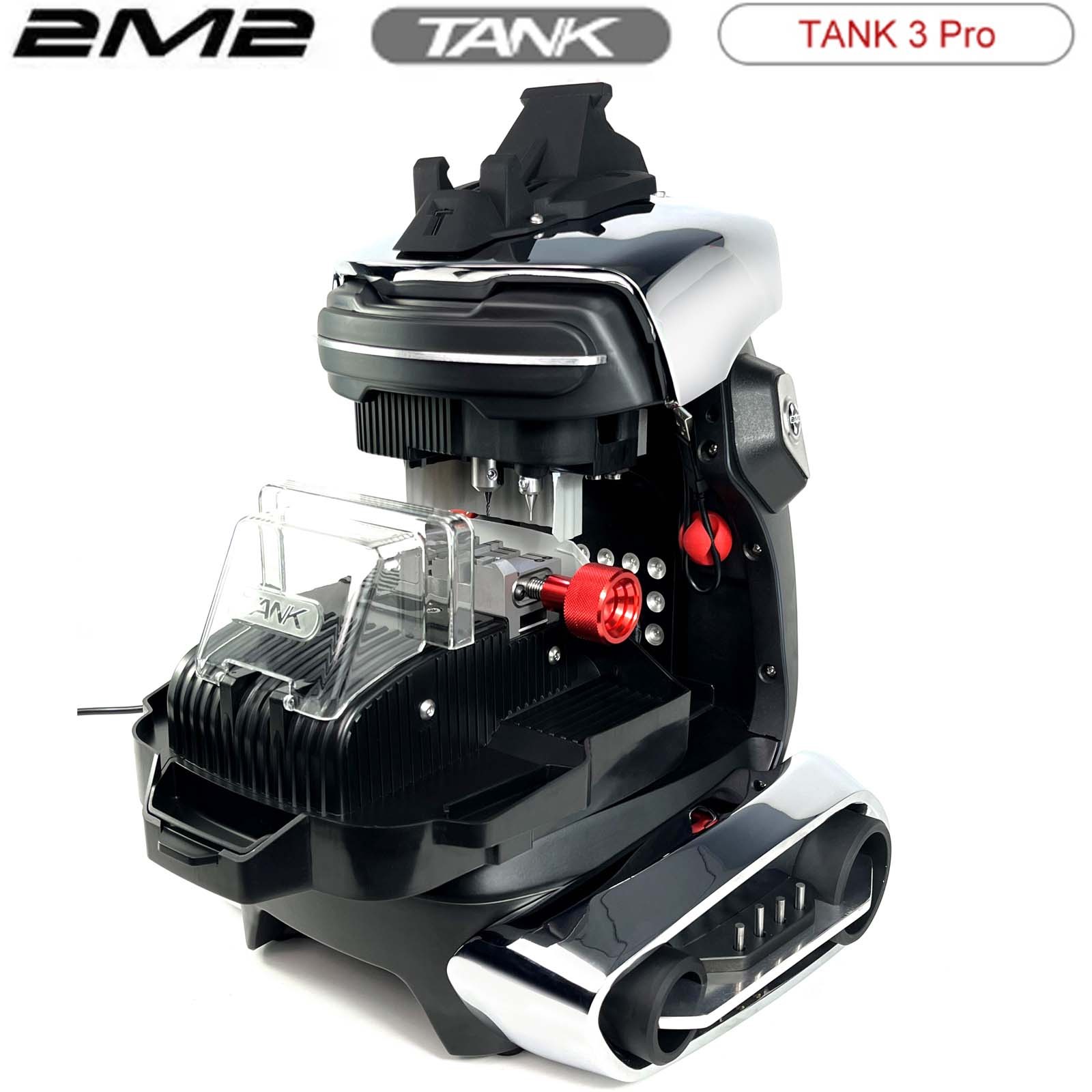

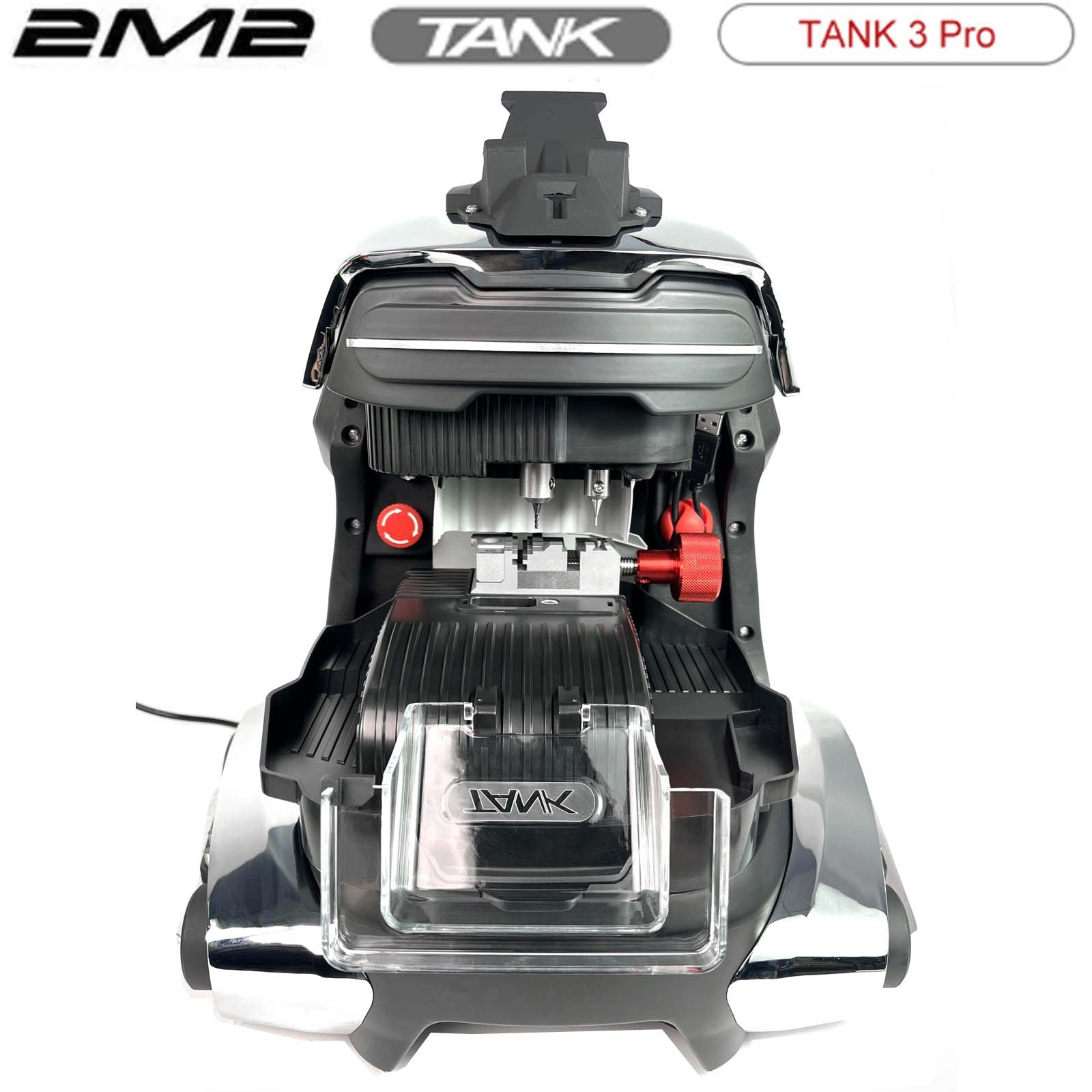

2024 Automatic 2M2 CNC Tank 3 Pro Key Copy Cutting Machine Tank2 Pro For Make Car Keys Locksmiths Tool With Black Colour

1、Safety precautions and warnings
 To avoid injuries to operators,please read this product user
 manual carefully Before you start and follow the safety notes
 listed below
 1-1 Power supply precautions
 ●Do not use damaged wires or loose socket
 ●Do not plug more devices at the same socket
 ●Do not pull wire or touch the metal part of power supply
 ●Unplug the machine when it is not in use for a long time
 ●If any problem happens,please contact technique support
 1-2 Installation precautions
 ●Do not place the machine in a place that is damp,greasy and
 dusty
 ●Do not put things like candle or cigarette end on the machine
 ●Always use the machine under safe environment
 ●Put the machine on the stable platform
 1-3 User precautions
 ●Do not have clothes,hair,hands and other tools close to the
 machine when
 it is working
 ●Do not put things like tool or container on the machine
 1-4 Other precautions
 ●Do not disassemble the machine if you don’t get permission
 from factory technique support.
 ●Keep the children away from the machine when it is working

2、General information
 2-1 Machine description
 Dear customer,thank you for using 2M2 tank automatic key cutting
 machine,it is a portable and light weight,especially designed
 for locksmiths in the world to work outdoor.To avoid injuries
 and damages to the machine,please use the machine correctly
 according to product user manual.Please read the manual
 carefully before you start to use the machine.
 2-2 Machine characteristics
 ●Smart control and operation on APP and build-in database
 ●Portability and build-in Lithum battery with a long battery
 life(optional)
 ●Equipped with B clamp(standard clamp),FO21 clamp
 ●Cutter and probe work in parallel
 ●Aluminum structure
 ●Imported ball screw with high precision
 ●Cross rail with high rigidity
 ●Supporting free online update
 ●Operating in multiple languages(Currently available in
 English, Spanish, Portuguese, Farsi, German, French, Hebrew,
 Hindi, Indonesian, Italian, Korean, Polish, Russian, Vietnamese,
 Japanese and other languages)

3、Product packaging checklist

4.Overview

Specification
 Input voltage  : 100-250V AC
 Input frequency  : 50-60Hz
 Power : 144W
 Power parameter : 24V DC/6A
 Battery capacity optional） :       65Wh
 Principal axis rotation speed : 10000rpm
 Working temperature  : -20℃-50℃
 Humidity  : 10-90%
 Grossweight  : 13KG
 Netweight  : 16.5KG
 Machine size  : 36cm*27cm*41cm
 Package size  : 43.5cm*35.5cm*46.5cm

Software overview
 Introduction
 ● Supporting self-calibration
 ●Supporting key duplication and cutting for vehicle/motorcycle/household
 keys
 ● Supporting universal key decode for multiple key types
 ● Operation on APP through Bluetooth
 ● Build-in key database
 Smart phone operation system
 ●Android：Android 5.0 and above version
 ●IOS:IOS 12.0 and above version
Software update
 ●Online update on APP
 ●Update via upgrade suite
