CG FC200 ECU Programmer Full Version with New Adapters Set 6HP & 8HP / MSV90 / N55 / N20 / B48/ B58/ No Need Disassembly

Highlights:

1. Protect Original Car Parts
More than 98% of ECUs support BENCH mode and OBD mode, no need to open the cover and punch holes to protect the original car.

2. Intelligent Recognition
The "identification" function can help users better diagnose whether the ECU module is communicating and check whether the wiring is wrong. If the ECU module can communicate without damage and the wiring is correct, the recognition can be successful, and the chip information, hardware information and firmware information can be read out.

3.Module Clone
Supports ECU data reading and writing and module cloning, no synchronization matching, no online programming, data sub-regional burning, automatic verification, and maximum protection of chips and modules.

4. ISN Read and Write
Supports engine computer ISN code acquisition for all BMW series (including Mini), which is convenient for key matching and anti-theft maintenance.

5.VIN modification
Solve the problem of double VIN or VIN mismatch of vehicles, which is convenient for vehicle maintenance.

6. Data Processing
Support engine computer data analysis and modification for Audi/Seat/Skoda/Volkswagen models;
Support the shutdown of Bosch MED/EDC17 series engine computer anti-theft system;
Support the TPROT off function of Bosch VAG MEDC17 series, BMW/Mini MEVD17/EDC17 series, Hyundai/Kia EDC17/MED(G)17 series.

7. FC200 not only support BMW ECU but also support over three thousands of ECUs like KTAG, Kess, Dimsport etc.
Check FC200 Support ECU List

8. Multi-Language: English, French and Simplified Chinese
Spanish, Polish, Turkish and Traditional Chinese need to pay $130.

9. Full Version with All License Activated.
After 1 Year Free Update, It will cost $200/year for FC200 Update Service

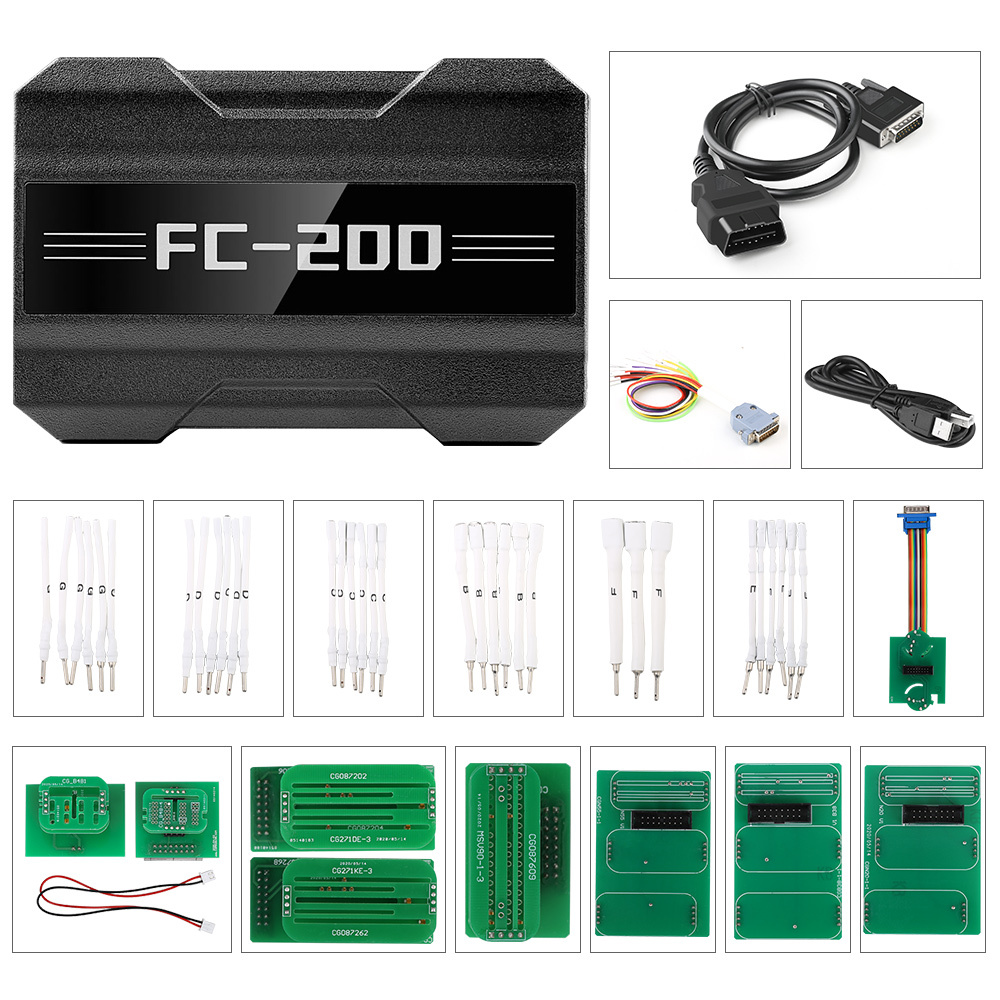

10. With New Adapters Set No Need Disassembly in Package:
Adapters Including: 6HP & 8HP, MSV90, N55, N20, B48/B58, B38, 271KE Adaper, 271DE Adapter.
(With this adapter set, you won't need the old B48/B58 cable anymore).

Notice:

Here is User Manual for your reference too.

CG FC200 ECU Programmer Full Version with New Adapters Set No Need Disassembly

FC200 Latest Update Information:

V1.1.8.0  Registered Version (2024.02.01)
1. Added Hyundai/Kia TCU: TC60.x.x
2. M7/ME7/M17 ST10F725/6 ECU adds the function of turning off the anti-theft system
3. GM E80 adds BOOT mode
4. BMW's new ECUs: MEVD17.8.4, ME17.2.42
5. Peugeot/Citroen MED17.4.2 TC1767 new platform mode
6. EDC17C84 adds the function of modifying VIN
BUG FIXED:
1. Fix the problem that some MD1CS089 cannot start the car after reading and writing data.
2. Fix the problem of Mercedes-Benz 9GT TCU cloning failure
3. Fix the problem of failure to write PFlash in GM 6T/6L gearbox
4. Fix GPEC2A and other unrecognized problems
5. Fix the problem that some ECUs such as EDC16C1 and EDC16CP35 fail to write to ExtFlash.
6. Volkswagen MED9.1 MPC563/4 supplementary wiring diagram
7. Hyundai/Kia EDC17CP14 corrected reading password wiring diagram
8. Volkswagen MED17.5 platform mode supplements other wiring diagrams
9. IVECO EDC17C69 supplementary wiring diagram

FC200 V1.1.7.0  Registered Version (2023.11.24)
1.Add Volvo Electric Equipment ECU: MB279700-9500, MB279700-9801, MB279700-9811
2.Add Audi ECU: Simos8.4x, Simos12.x
3.New Hyundai ECU/TCU: SIM2K-240_ ECU, SIM2K-341_ TCU
4.Fix issues with some ECU cloning failures: MED17.3.1/MED17.7.2/MED117.7.3/MED17.5.5 and general Exx series, etc
5.Fix the issue of some universal ECU recognition failures: E78/E39/E39A/E80, etc
6.Lovol added ECU: EDC17CV43
7.BMW adds ECU: MEVD17.8.4
8.Added ECU for PFlash verification algorithm: MSV90, SID807EVO, EMS3110, SIM2K-240_ ECU, SIM2K-341_ TCU, Simos12. x, Simos8.4
9.Add and modify ECU for VIN: CPGDSH1.21.6, CPGDSH2.2x. x
10.Optimize the PFlash verification algorithm for DQ380
11.Fix some bugs and optimize software performance

FC200 V1.1.6.0 Registered Version (2023.10.16)
1.Added CONTINENTAL TC17 type engine computers (BOOT mode): SID310, SID807EVO, EMS3110;
2.Added CONTINENTAL SPC5xx type engine computers (BOOT mode): GPEC3, GPEC2A, GPEC4, GPEC4LM, GPEC2;
3.Added CONTINENTAL TC17 type engine computer (BOOT mode): SIMOS8.2x, EMS2511, EMS24xx, EMS2205, SDI9, SDI3, SDI4, SDI10.x, SDI21.x;
4.Added new GM type engine computer: E98;
5.Added the Flash verification function of the gear box computer: DQ380, 8HP, 7DCT300, 9GT-VGS-NAG3;
6.Added PFlash verification function for CONTINENTAL TC17 engine computer;
7.Added the function of independently reading and writing DFlash/PFlash/ExtEEPROM/ExtFlash: MSD80/MSD81/MSD85/MSD87/MSV90/SIM271KE;
8.Fix some BUGs and optimize software performance.

FC200 V1.1.5.0 (2023.08.18)
1.New platform mode engine for Bosch MPC5xx class: (Note: To be used with MPC5xx adapter)
EDC16U31、EDC16C1、EDC16C10、EDC16C31、EDC16C32、EDC16C34、EDC16C35、EDC16C36、EDC16C37、EDC16C39、EDC16C41、EDC16C9、EDC16CP33、EDC16CP34、EDC16CP36、EDC16CP39、EDC16U34、EDC16UC40、ME9.1.1、ME9.6.1
2.Newly added BOSCH TC17 series platform and boot mode engines: DCU17HD01、DCU17PC42、DCU17PC43、DCU17CV51、DCU17PC_ DNX
3.KEFICO TC series engines add PFlash verification function
4.GM series engines add PFlash verification function
5.Fix the issue where the 8HP transmission does not support the E-series (R5F72519R)
6.Optimize the verification algorithm for VGS2-FDCT type transmissions
7.Fix some MD1CS089 engine connection failure issues
8.Fix some bugs and optimize software performance

FC200 V1.1.4.0 Registered Version NEW (2023.07.17)
1.Newly added CONNECTAL TC17 platform mode engines: SDI6, Simos8.3x, Simos8.5x
2.Newly added CONNECTAL TC17 BOOT mode engines: SDI6, SDI7, Simos8.1x, Simos8.3x, Simos8.5x, SID208, PCR2.1
3.BOSCH MPC5xx chip ECU adds verification function
4.New platform mode engine: MD1CS089
5.New Volkswagen transmission mileage repair function: DQ200 TC1784
6.Fix the function of modifying the VIN of Volkswagen ME17.5.22/24/26 and other engines
7.Fix some PCR2.1 write PFlash failure issues

V1.1.3.0  Registered Version NEW (2023.05.24)
1.Newly added CONNECTAL TC17 platform mode ECU: PCR2.1, SDI7, DPS6
2.Add BOSCH MPC5xx platform mode ECU: MED9.1, MED9.5, MED9.5.10, ME9.0, EDC16CP31, EDC16CP35, EDC16C2, EDC16C8
3.New Volkswagen TCU mileage repair function: DQ200 TC1766, DQ250, VL381, DL382
4.Add Hyundai/Kia/Ssangyong KEFICO CPEGD2.20. x ECU functions: platform mode data read and write, modify VIN functions
5.Add Mercedes Benz CRD2. x MPC556x engine platform mode
6.DELPHI TC17 chip ECU adds PFLASH verification function
7.ECU with PFLASH verification function added to BOSCH ST10F chip: ME7.4.5
8.GM 6T30, 6T80, 6L80 TCU added PFLASH verification function
9.Diesel ECU EDC17C53, EDC17C63, EDC17C81 and other newly added anti-theft system shutdown functions

CG FC200 Version V1.1.2.0 Update Notice on Apr 7th, 2023
1. Fix the problem of engine recognition and read/write failure in GM E38, E67 and E39
2. Add GM E37, E39A, E78, E80 and E83 engine platform mode
3. GM E38, E67, E39 and E39A engines add Ext FLASH verification function
4. Add the "time repair" function of "Lovol harvester" to support the EDC17CV53 engine of Lovol harvester
5. Benz VGS-FDCT, VGS2-FDCT and VGS-FCVT gearbox add PFLASH verification function
6. Volkswagen DL501 Gen2 and DL382 transmissions add PFLASH verification function
7. Add BOSCH ST10 engine: M7.4.4, ME7.3.2, ME7.4.4
8. Fix the connection failure of DELPHI CRD3.10, CRD3.xx TC1797 and other engine platform modes

CG FC200 V1.1.1.0 Software Update Notice on Feb 1st, 2023
1.Setup interface adds-Server Selection function
2.Optimize the device activation interface (add the "Activate" prompt)
3.Repair the failure problem of the Bosch query abroad
4.Added GM AcDelco transmission platform mode: GM 6T30/35/40/45/50, GM 6T70/75/80, GM 6L45/50/80/90
5.New BOOT mode of BOSCH ST10 engine: ME7.1.1, ME7.5.10, ME7.8.2, and MED 7.6.2
6.New BOSCH TC17 engine platform mode: ME17 TC1728 (China)
7.New BOOT mode of KEFICO TC17 engine: CPGDSH2.2x.x, CPGDSH1.26.1, KME 1.9.3.1
8.New BOSCH VAG gearbox PFLASH calibration function: DQ200 TC1784, DQ200 TC1766, DQ250 TC1766, DL501Gen1 TC1766, VL381 TC1766
9.Newly modified VIN model: MED 17.8.3

CG FC-200 V1.1.0.0 Software Update Notice on Dec 13th, 2022:
1. Added DELPHI platform and BOOT engine: CRD3.10, CRD3.E1, CRD3.F1, CRD3E.1, CRD3P.B0, CRD3P.C0, CRD3P.D1, CRD3P.G0, and CRD3xx
2. Added BOSCH BOOT engines: ME7.5.20, M7.9.5, ME7.9.51, and ME7.9.52
3. Add PFLASH check function for MG1C, MD1C SPC5777 and TC298TP engines of BOSCH
4. Added password reading function in the platform mode of GM engine E39
5. Optimize the PFLASH verification algorithm of BOECH's TC17 series engines
6. Added BOSCH platform engine: EDC17CV53
7. Fix some bugs and optimize software performance

Newest CG FC200 V1.0.9.0 Upgrade Notice in Oct, 2022:
1.Added GM engine computer
ACDelco E38: Read and write EEPROM and FLASH
ACDelco E39: Read and write FLASH and password
ACDelco E67: Read and write EEPROM and FLASH
Models involved: Buick, Cadillac, Chevrolet, GMC, Holden, Hummer, Isuzu, Opel, Pontiac, Saab, Saturn, Vauxhall

2. Added new gearbox computer
ZF_9HP TC1782: Read and write DFLASH and PFLASH
Models involved: Acura, Chrysler, Citroen, DS, Peugeot, Dodge, Fiat, Honda, Jaguar, Jeep, Land Rover

3. Added Bosch engine computer (platform mode)
MD1CS018
MG1CS032
MG1CS026
MG1CA007
MG1CA811
MG1CA920

4.Added engine computer to modify VIN function
EDC17C42
EDC17CP27
MED17.8.2
MEVD17.2.7

5. Fixed some bugs and optimized software performance

Note:
Please update the authorization for the first time to use, and then restart the FC200 software.

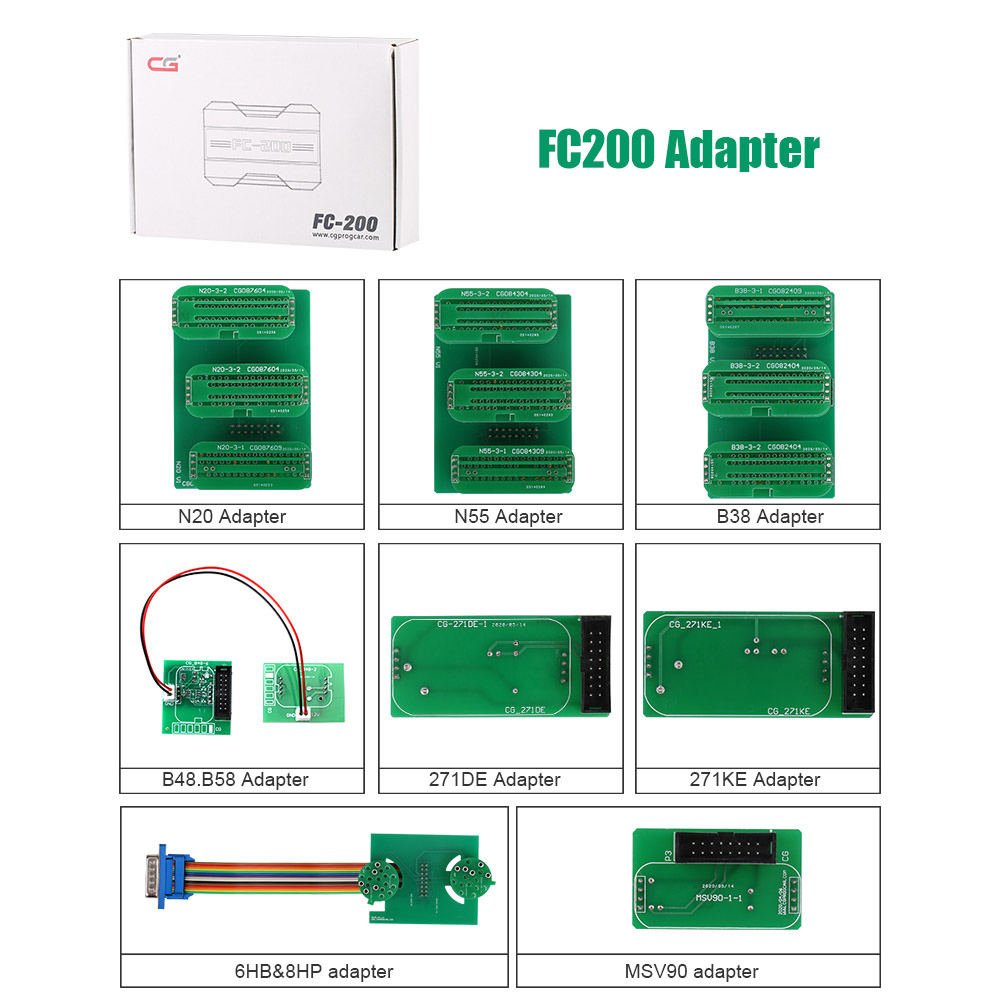

Functions of Each Adapter:

1. MSV90 Adapter:
This adapter supports ISN reading and writing and data backup and recovery of BMW MSV90
CG FC200 ECU Programmer Full Version with New Adapters Set Work on MSV90
2. N20 Adapter:
This adapter supports ISN reading and writing, VIN modification and data reading and writing functions of the N20 and N13 of the F series chassis of BMW

CG FC200 ECU Programmer Full Version with New Adapters Set Work on N20

3. B48/B58 Adapter:
This adapter supports ISN reading and data reading and writing functions of BMW models: MG1CS003, MG1CS024 and MG1CS201.

CG FC200 ECU Programmer Full Version with New Adapters Set Work on B48

4. 271KE Adapter & 271DE Adapter:
These two adapters support the data backup and recovery functions of Mercedes-Benz SIM 271KE and SIM 271DE

CG FC200 ECU Programmer Full Version with New Adapters Set Work on 271KE
CG FC200 ECU Programmer Full Version with New Adapters Set Work on 271DE

5. 6HP & 8HP Adapter:
The adapter is used for the data backup and recovery function of the 6HP and 8HP EGS of BMW models.

CG FC200 ECU Programmer Full Version with New Adapters Set Work on 6HP and 8HP

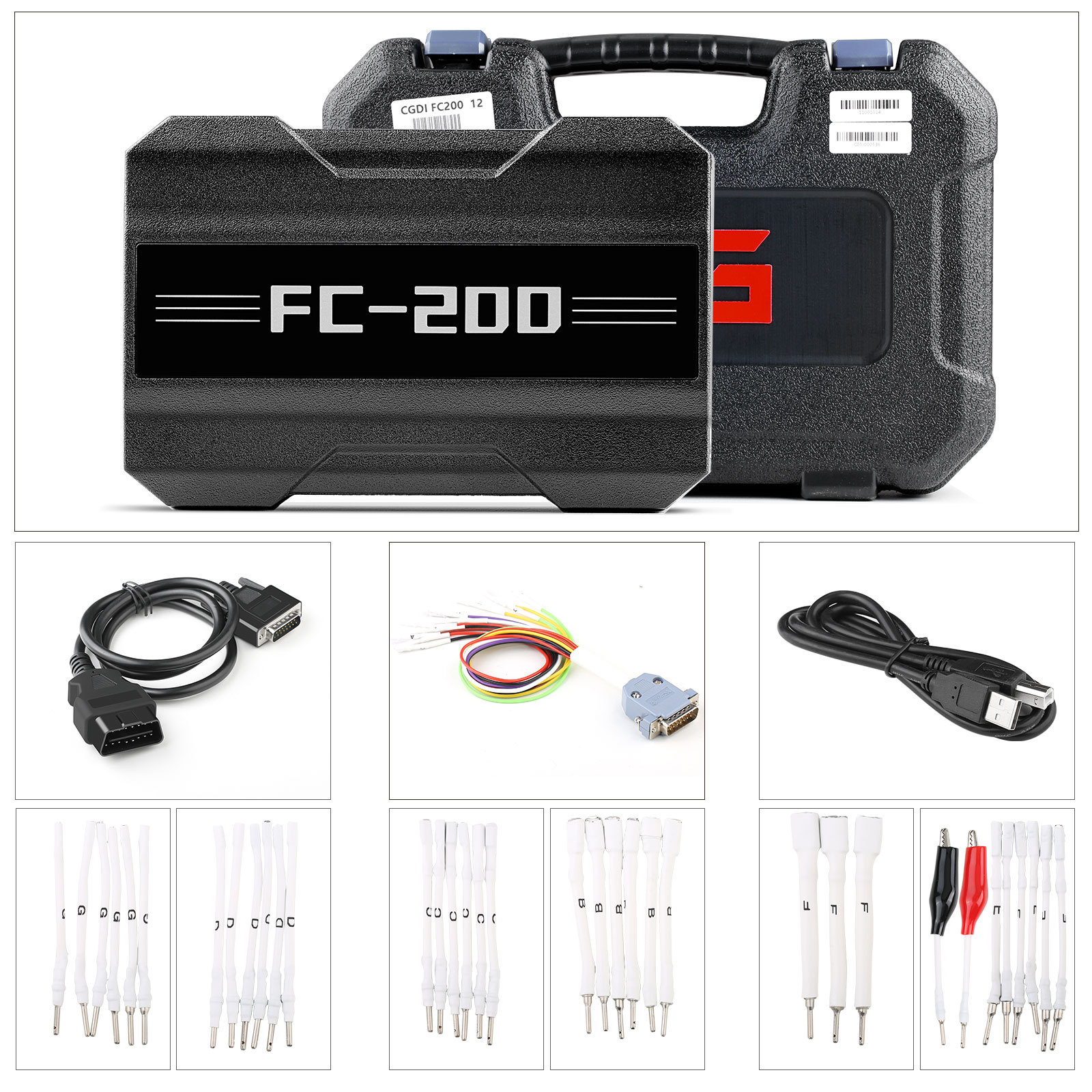

Package List:

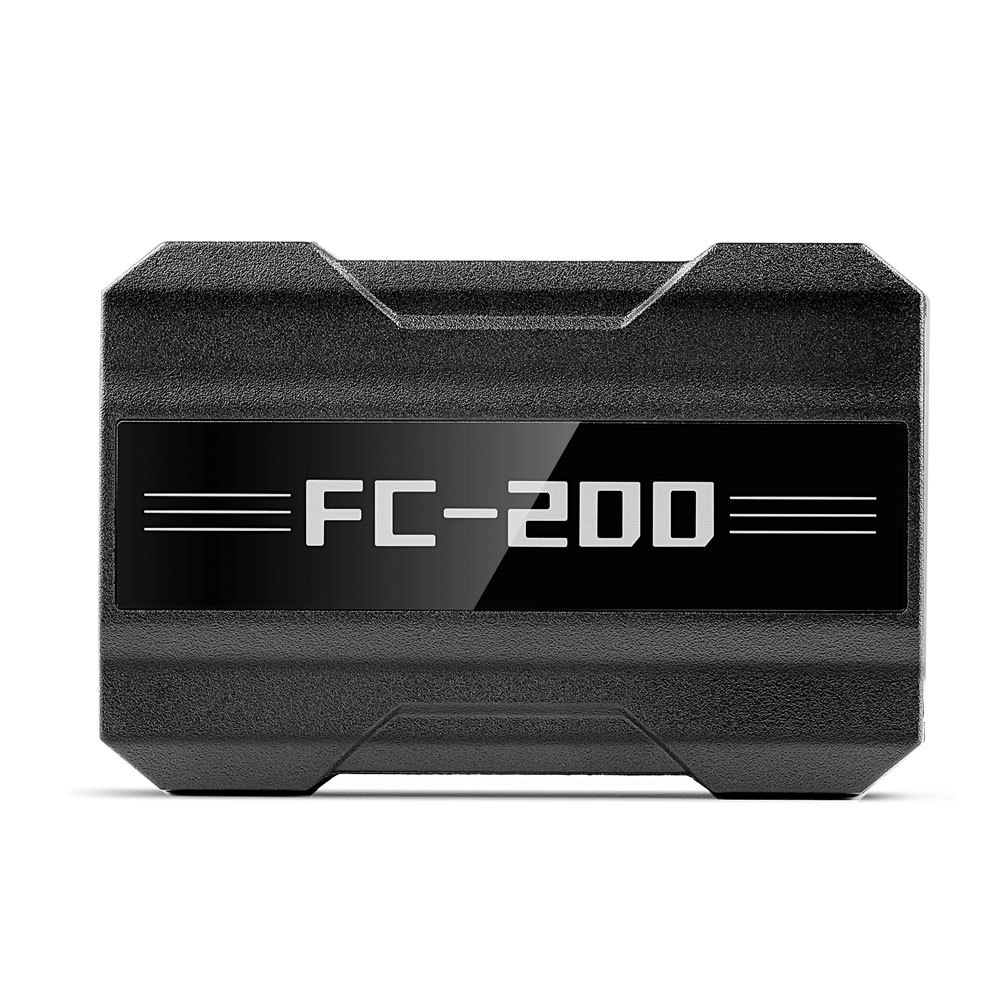

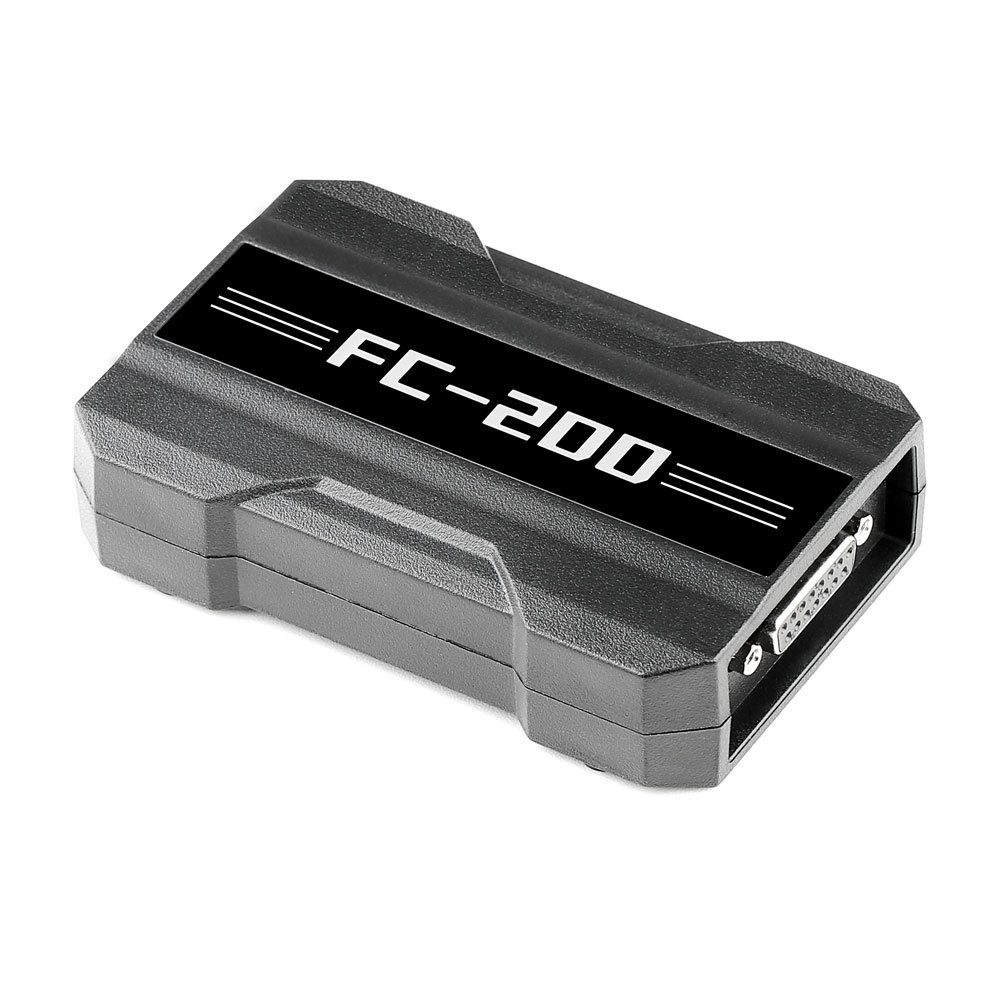

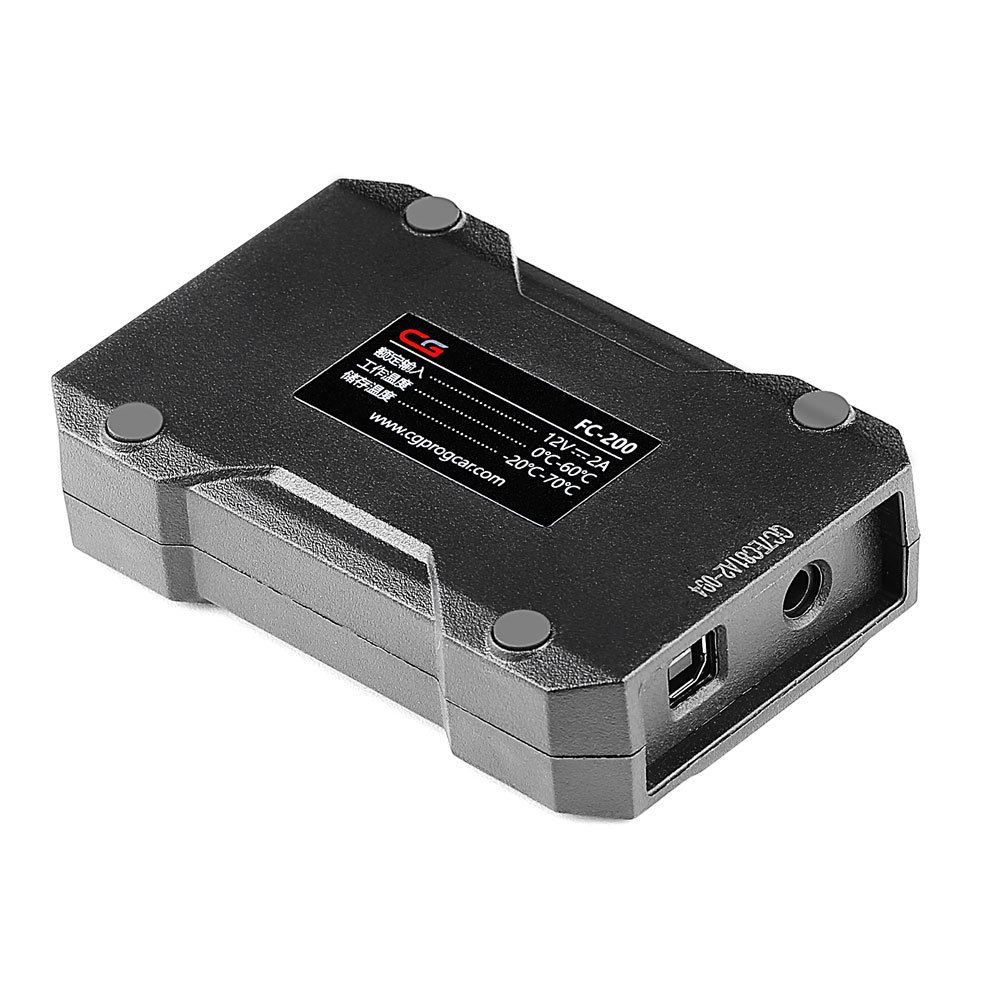

1pc x CGDI FC200 Host
1pc x OBD Cable
1pc x Jumper
1pc x USB Cable
6pcs x G-type Adapter Cable
3pcs x F-type Adapter Cable
6pcs x E-type Adapter Cable
6pcs x D-type Adapter Cable
6pcs x C-type Adapter Cable
6pcs x B-type Adapter Cable

FC200 Adapter Set
including: 6HP & 8HP, MSV90, N55, N20, B48/B58, B38, 271KE Adaper, 271DE Adapter




We are dedicated to providing excellent support and assistance. If you have any questions, concerns, or inquiries, please don't hesitate to reach out to us. Our team is here to help!
Email: info@todiag.com
Whatsapp: +86-15889387385
Skype: ssss.hong
Live Chat: Visit our website and click on the live chat option to chat with Oliver Liu in real-time.

CUSTOMER REVIEWS

0.0 0 Reviews
Write a review
Reviews
With Media
Frequently Bought Together
more
Frequently Bought Together
$0.00 $0.00
Please choose options.Back to top
Close
$0.00 $0.00
