IDSS Isuzu Global Diagnostic services System （E-IDSS）2018 Isuzu Diagnostic Tool
NOTE：
E-IDSS exclusive software for Isuzu Industrial engines,Can Not use in truck and bus engine.if you want diagnostic truck, bus and pickup, you buy G-IDSS 2018 Is OK.
E-IDSS USB-Link works very well, but there is no ECU/ECM plug connector, so it can't write data into ECM/ECU. Other functions can be perfectly diagnosed, including Euro IV, Euro 5 DPF regeneration function, injector code, write VIN, diesel pump Functions such as adjustment functions e-idss is software USB-LINK Special Edition is hardware. It can only test the Isuzu engine sensor, adblue and DPF of the Denso ECU/ECM
It can test the Isuzu engine sensor, adblue and DPF of the Diagnostic Denso ECU but it can't test the Bosch and Delphi systems ISUZU. Only test denso isuzu,denso KATO,denso kobelco,denso Sumitomo denso HITACHI ECU/ECM.
IDSS Isuzu Global Diagnostic services System (E-IDSS ) 2018.
All regions
Languages: English, Japanese chinese
OS: Win7 x32, Win7 x64, Windows10 x32/x64
Quantity of CD: 1 DVD
Data of update: 7/2018
DENYO
2005-2015 (4JJ1 Tier-4, 4HK1 Tier-4, 6WG1 Tier-4, 4LE2 Tier-4, 6WG1 INT-Tier-4, 4JJ1 Tier-3, 4HK1 Tier-3, 6HK1 Tier-3, 6WG1 Tier-3)
Doosan
2005-2010 (6WG1 Tier-3, 6UZ1 INT-Tier-4, 6WG1 INT-Tier-4)
Hidromek
2005-2012 (4JJ1 INT-Tier-4, 4HK1 INT-Tier-4, 6HK1 INT-Tier, 4JJ1 Tier-3, 6UZ1 Tier-3, 4HK1 Tier-3, 6HK1 Tier-3)
Hitachi
2005-2015 (4JJ1 Tier-4, 4HK1 GB3, 6HK1 GB3, 6UZ1 GB3, 6WG1 GB3, 4JJ1 GB3, 4HK1 tier-4, 6HK1 tier-4, 6UZ1 tier-4, 6WG1 tier-4, 4HK1 INT-Tier-4, 6HK1 INT-Tier-4, 6UZ1 INT-Tier-4, 6WG1 INT-Tier-4, 4JJ Tier-3, 4HK1 Tier-3, 6HK1 Tier-3, 6WG1 Tier-3)
Hokuetsu
2005-2014 (4LE2 Tier-4, 4JJ1 Tier-3, 6UZ1 Tier-3, 4HK1 Tier-3, 6HK1 Tier-3)
HSC
2005-2010 (6HK1 INT-Tier-4, 4HK1 Tier-3, 6HK1 Tier-3, 6WG1 Tier-3)
IHI
2005-2006 (4JJ1 Tier-3, 4HK1 Tier-3, 6HK1 Tier-3)
ISEKI
2006-2012 (4JJ1 INT-Tier-4, 4JJ1 Tier-3)
Isuzu PT-China
200 5-2015 (6WG1 GB3, 4HK1 INT-Tier-4, 6HK1 INT-Tier-4, 4JJ1 Tier-3, 4HK1 Tier-3, 6HK1 Tier-3)
Isuzu America
2005-2013 (4JJ1 Tier-4, 4LE1 Tier-4, 4JJ1 Tier-3, 6UZ1 Tier-3 Tier-4,
4HK1 Tier-3, 6HK1 Tier-3, 6WG1 Tier-3)
IWAFUJI
2005-2006 (4JJ1 Tier-3, 4HK1 Tier-3)
JCB HP
2005-2010 (6HK1 INT-Tier-4, 4HK1 INT-Tier-4, 4JJ1 Tier-3, 4HK1 Tier-3, 6HK1 Tier-3)
KATO
2006-2013 (4LE2 Tier-4, 4JJ1 INT-Tier-4, 4HK1 INT-Tier-4, 4JJ1 Tier-3)
KCM
2005-2014 (6WG1 Tier-4, 6WG1 INT-Tier-4, 4HK1 Tier-3)
KG Flowtech no
2005 (4HK1 Tier-3)
Kobelko
2013 (4LE2 Tier-4)
Madill
2005 (6HK1 Tier-3)
Maeda Seisakusho
2013 (4LE2 Tier-4)
Morooka
2010 (4HK1 INT-Tier-4)
NH Kobelco
2005 (6HK1 Tier-3)
Nihon Josetsu
2005-2013 (4LE2 Tier-4, 4JJ1 INT-Tier-4, 4HK1 INT-Tier-4, 4JJ1 Tier-3, 4HK1 Tier-3)
Nihon Sharyou
2005-2006 (4JJ1 Tier-3, 6UZ1 Tier-3, 4HK1 Tier-3, 6HK1 Tier-3)
Sakai
2005-2012 (4JJ1 INT-Tier-4, 4JJ1 tier-3, 4HK1 Tier-3)
Sanward
2005-2006 (4JJ1 Tier-3, 4HK1 Tier-3)
Sany
2005-2014 (6WG1 GB3, 4HK1 INT-Tier-4, 6HK1 INT-Tier-4, 4JJ1 Tier-3, 4HK1 Tier-3)
Shinko Engineering
2005 (4HK1 Tier-3, 6HK1 Tier-3)
Sumitomo
2005-2015 (4JJ1 Tier-4, 4HK1 GB3, 6HK1 GB3, 4HK1 Tier-4, 4JJ1 GB3, 6HK1 Tier-4, 4LE2 Tier-4, 4JJ1 INT-Tier-4, 4HK1 INT-Tier-4, 6HK1 INT-Tier-4, 6UZ1 INT-Tier-4, 4JJ1 Tier-3, 6UZ1 Tier-3, 4HK1 Tier-3, 6HK1 Tier-3, 6WG1 Tier-3)
Takeuchi
2 006-2013 (4JJ1 Tier-4, 4JJ1 INT-Tier-4, 4JJ1 Tier-3)
Unicarriers
2005-201 0 (4HK1 INT-Tier-4, 6HK1 INT-Tier-4, 4HK1 Tier-3, 6HK1 Tier-3)
Uotani
2005 (4HK1 Tier 3)
Yamabiko
2005 (4HK1 Tier-3, 6HK1 Tier-3)

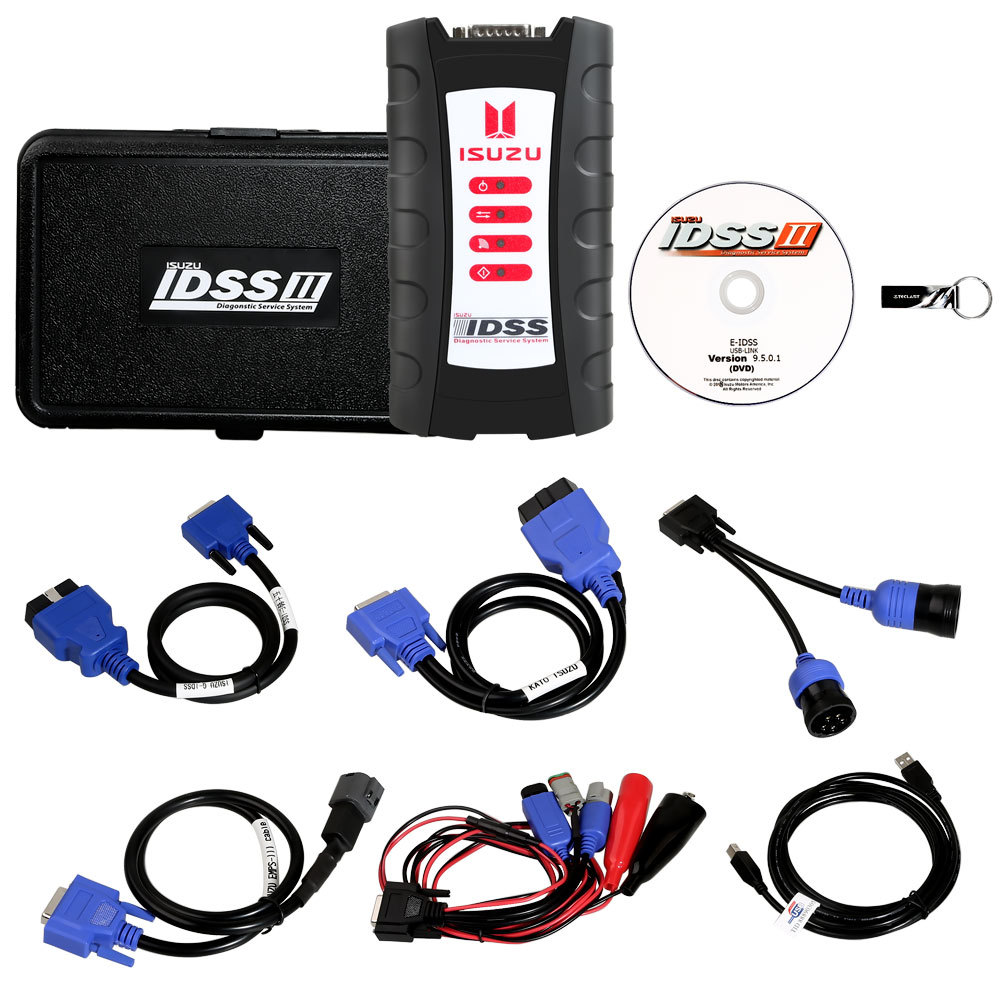

Package list:
1pc x E-IDSS program（Diagnostics activation,reflash not activation）

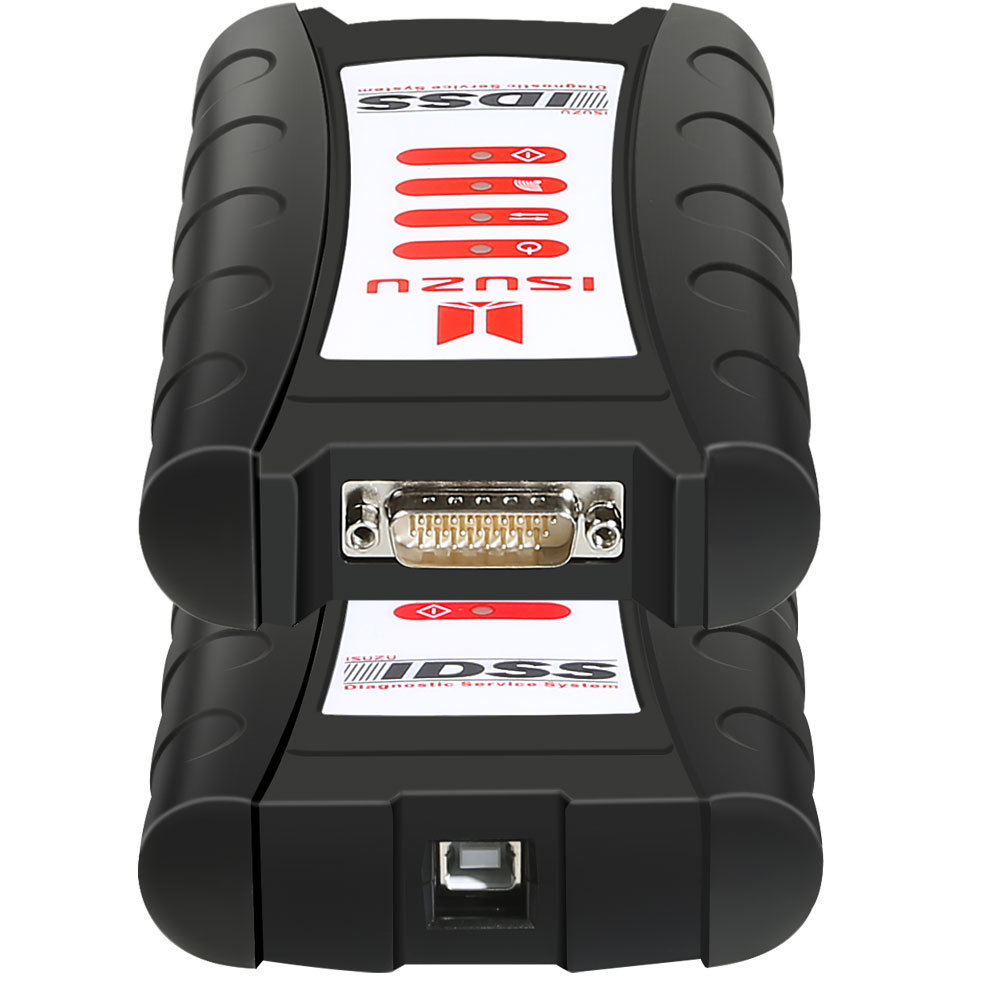

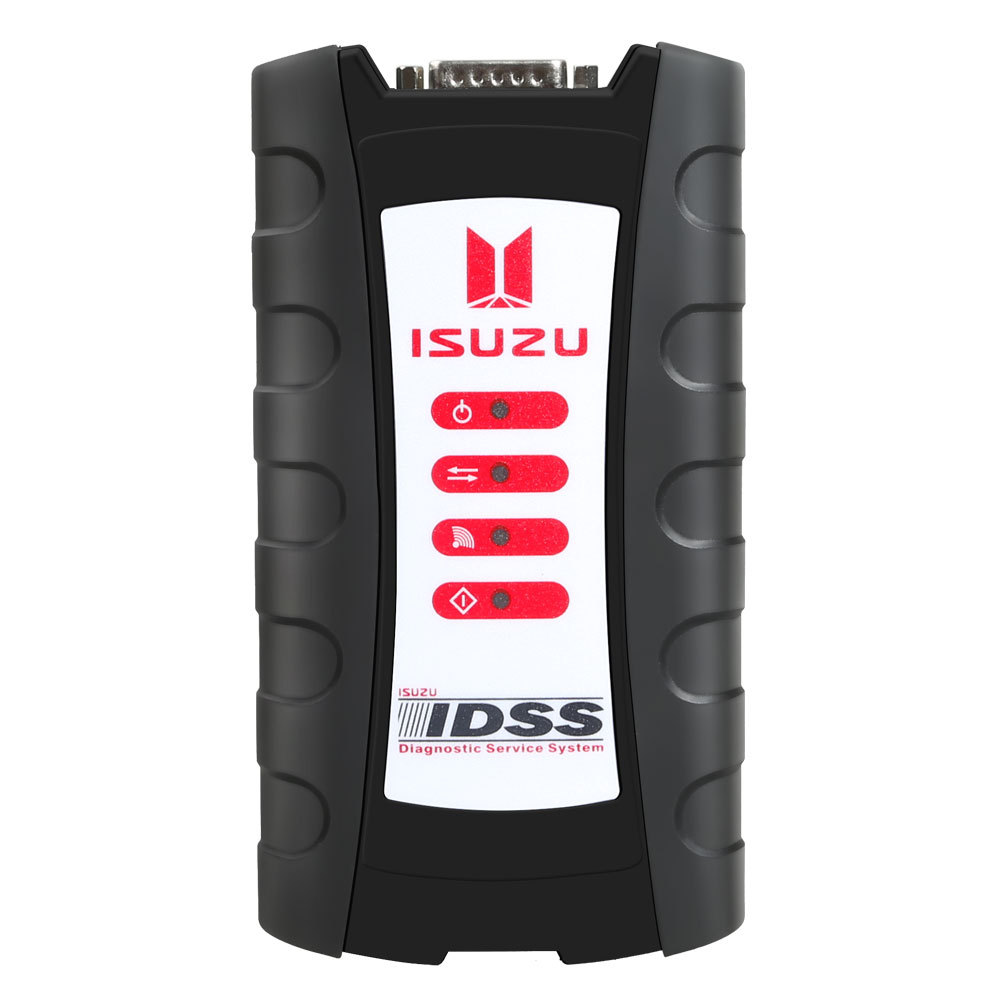

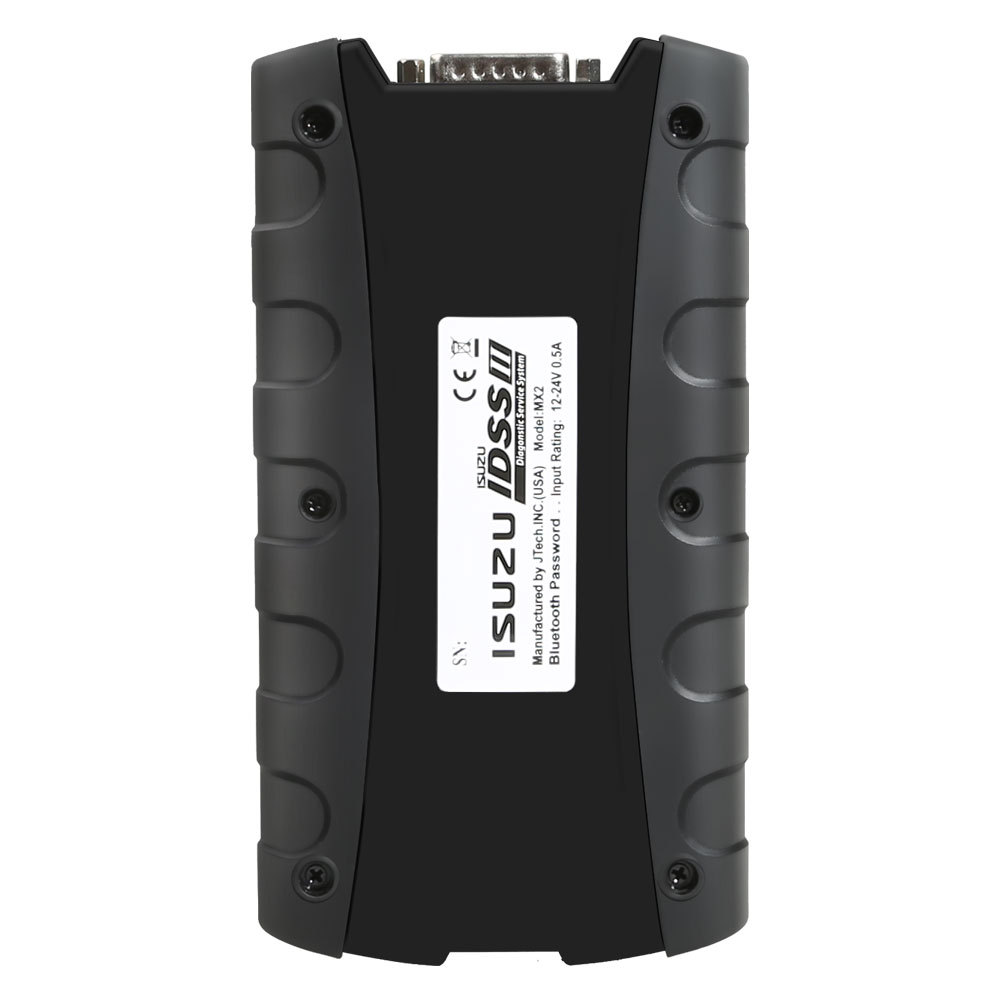

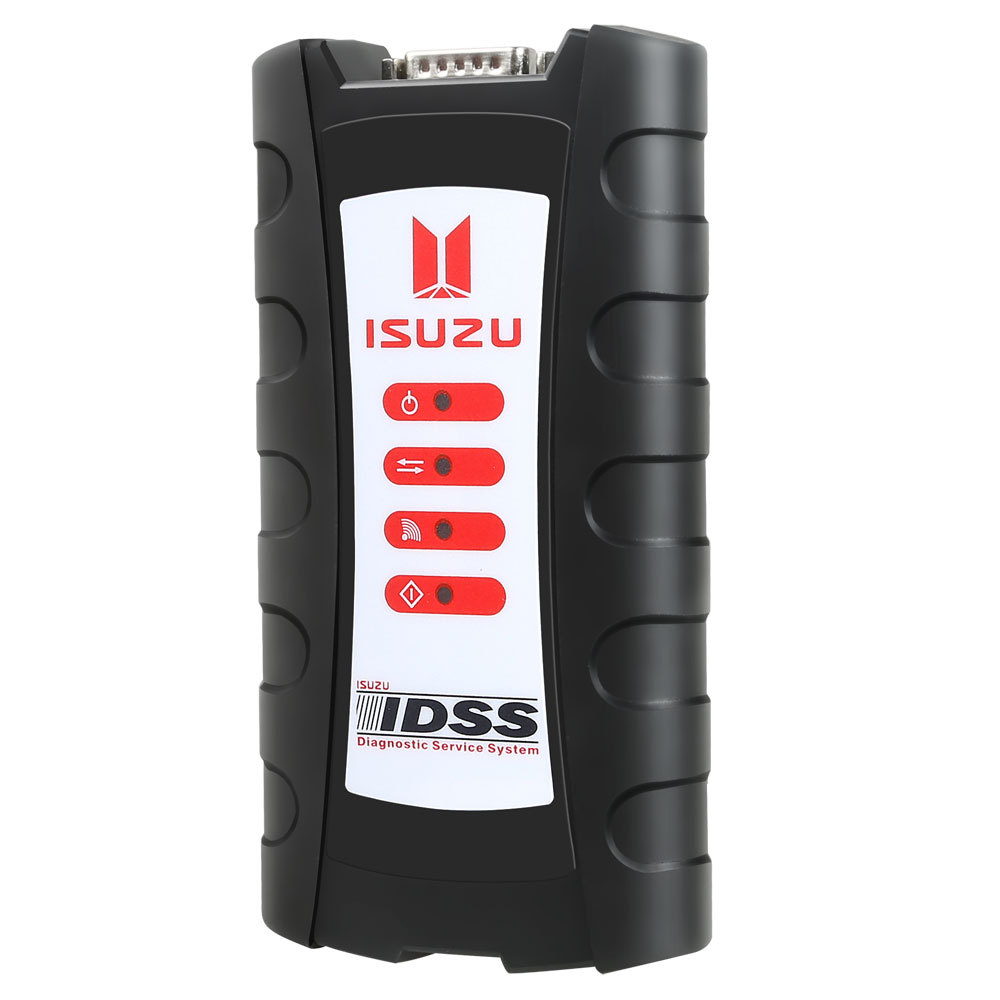

1pc x IDSS USB-Link 1 adapter
1pc x USB cable
1pc x 6-pin/9-pin American cable
1pc x E-IDSS OBD2 cable
1pc x KATO Cable With DC 2.1 Famale
1pc x HITACHI EMPS-III Cable
1pc x CANBUS 3pin
