(G-IDSS) 2018 ISUZU Truck Bus on-high Way engine Diagnostic kit With Light-Truck pickup DPF diesel SUV D-max Diagnostic

G-IDSS 2018  ISUZU Truck Bus on-high Way engine Diagnostic kit With Light-Truck pickup DPF diesel SUV D-max Diagnostic

NOTE:

Supports ALL REGION trucks except North America , It is complete kit, ready to use.

G-IDSS USB-Link works very well, but there is no ECU/ECM plug connector, soit can't write data into ECM/ECU. Other functions can be perfectly diagnosed, including Euro IV, Euro 5 DPF regeneration function, injector code, write VIN,diesel pump Functions,such as adjustment functions G-idss is software USB-LINK Special Edition is hardware.It can only test the Isuzu engine sensor, adblue and DPF of the Denso ECU/ECM

Region: Australia, Asia, Europe, Spain, Canada, China

Languages: English, Spanish, Chinese, German, French, Japanese,  Thai, Turkish, Ukrainian, Greek, Hungarian, Italian, Indonesian, Vietnamese

OS: Win7/Win10  x64&x86,

Data of update: 2/2018

Isuzu Global Diagnostic services System (G-IDSS ) 2018

IDSS USB-Link works very well,but there is no ECU/ECM plug connector,

so it can't write data into ECM/ECU.Other functions can be perfectly diagnosed, including Euro IV, Euro 5 DPF regeneration function, injector code, write VIN, diesel pump Functions such as adjustment functions.

G-IDSS is software,USB-LINK Special Edition is hardware.It can only test the Isuzu engine sensor, adblue and DPF of the Denso ECU/ECM.It is special edition,so don't choose USB-Link everytime,only one time choose USB-LINK driver is ok.

IDSS USB-Link can only test the Isuzu engine sensor, adblue and DPF of the Denso ECU.

SERVICE INFORMATION,NOT AVAILABLE ON ALL MODELS ....!!!

Isuzu G-IDSS Export 2018 - Isuzu Diagnostic Service System description of the catalogue:

G-IDSS exclusive software for Isuzu vehicles. With each new release of the G-IDSS program, additional vehicle engine configurations and controller systems may be supported. Controller Programming allows you to update and reprogram various vehicle controllers based on part numbers and/or new available calibration files. You can program the following types of controllers by selecting Controller Programming from the TOC

G-IDSS functions are:

 • Service Infomration;

 • Diagnostics (Engine, Transmission, Chasis, Body);

 • Controller Programming

Select OEM, Model Year, Engine Model and Engine Type drop down menus

Enter Engine Serial Number window

ISUZU_G-MC: 1996-1999 NPR Diesel and F Series Include NPR/W 3500, NPR HD/W 4500, This is for 6.0L V-8 Gasoline Engines only, 7.8L

Heavy-duty ISUZU 6HK1 Engine 6WG1  6WF1.

Isuzu: NPR, NPR HD, NQR, NRR, FTR, FVR, FXR with 6HK1 LG4 Engine, NPR, NPR HD,NQR, NRR with 5.2L (4HK1) or 3.0L (4JJ1) Diesel engine. 6.0L V-8 Gasoline Engine

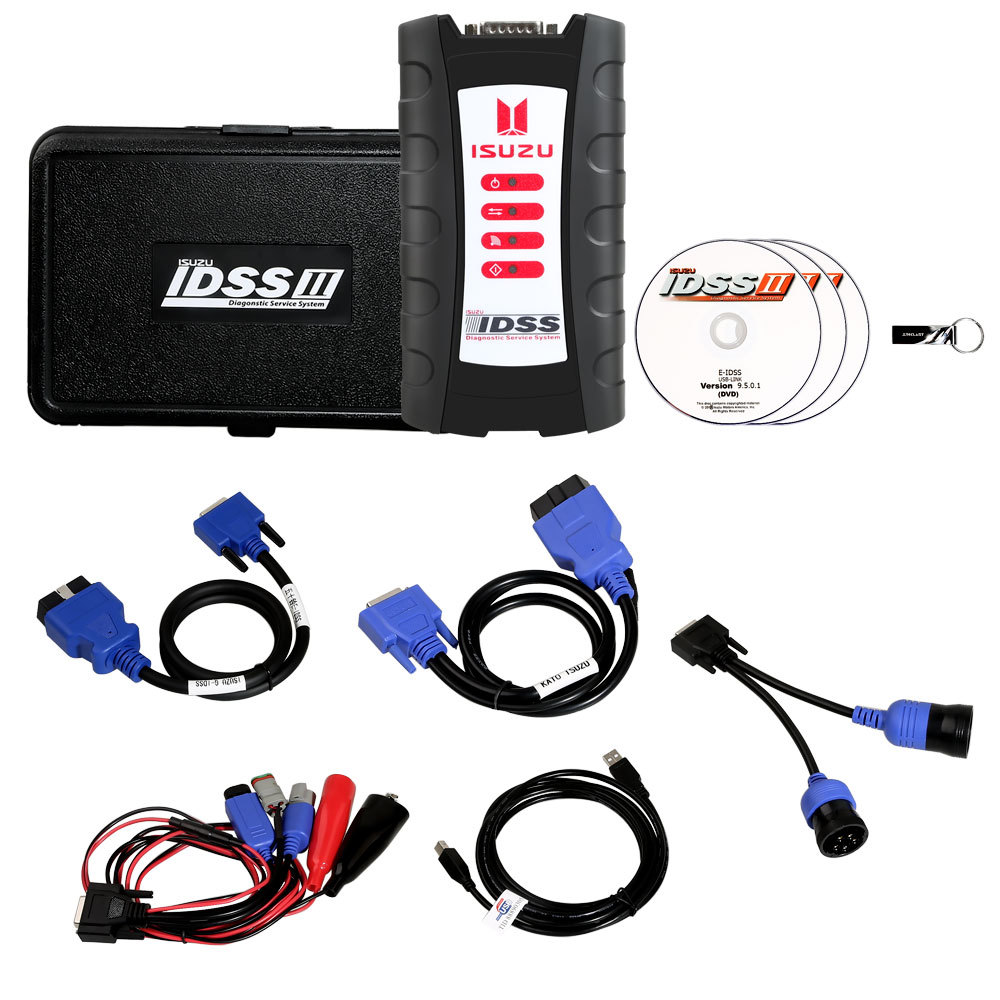

Package includes:

1pc x G-IDSS program（Diagnostics activation.reflash not activation）

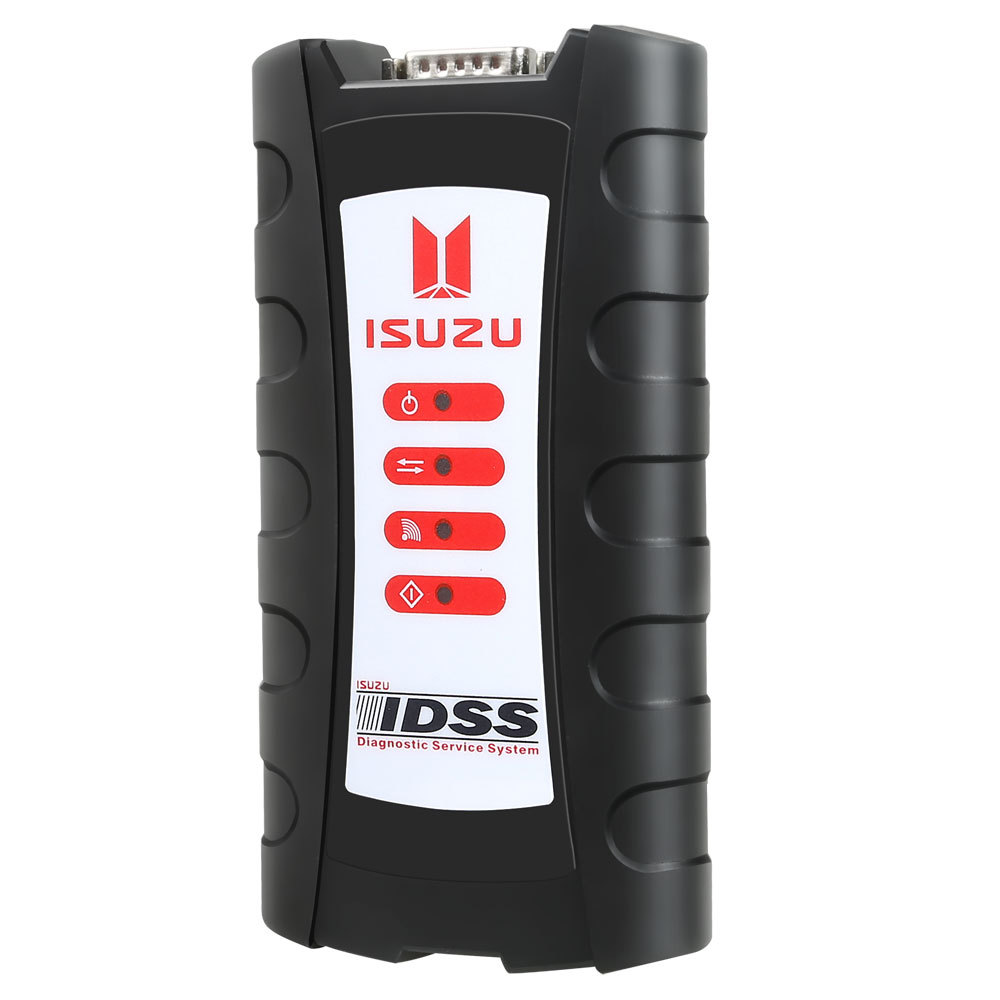

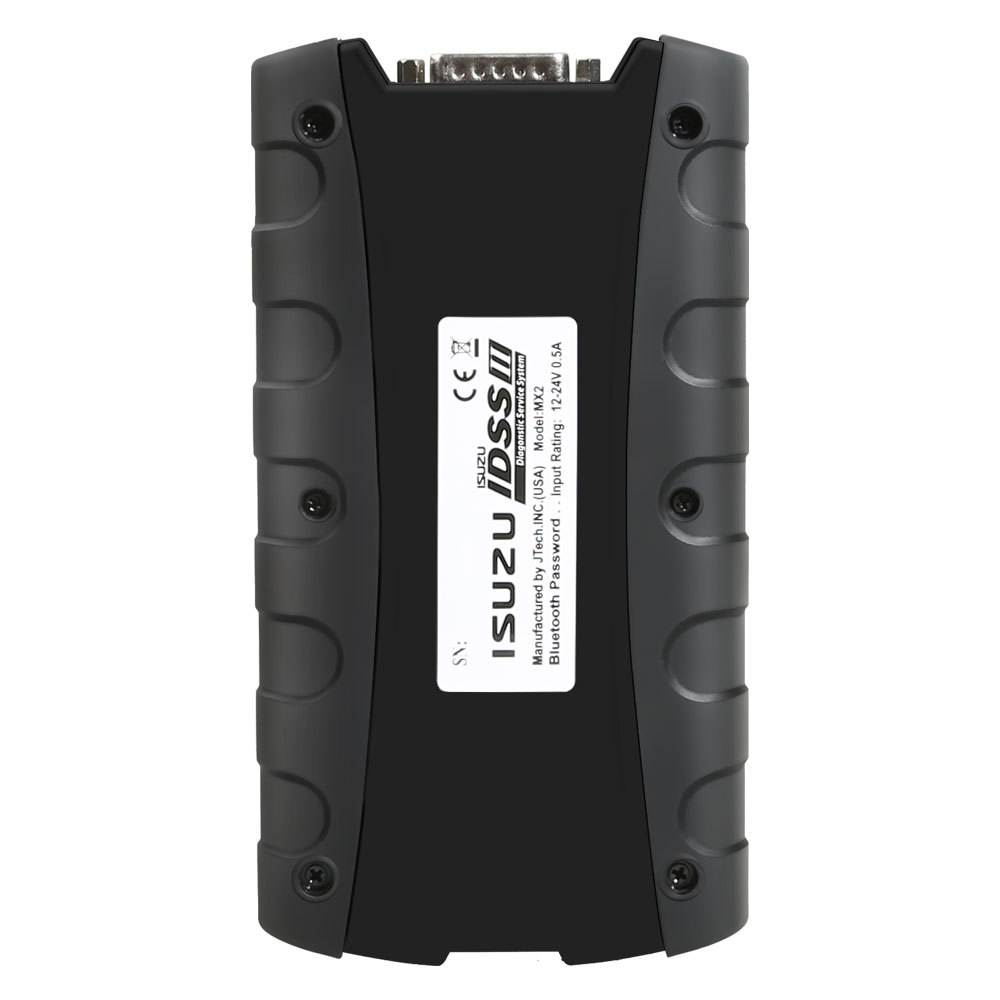

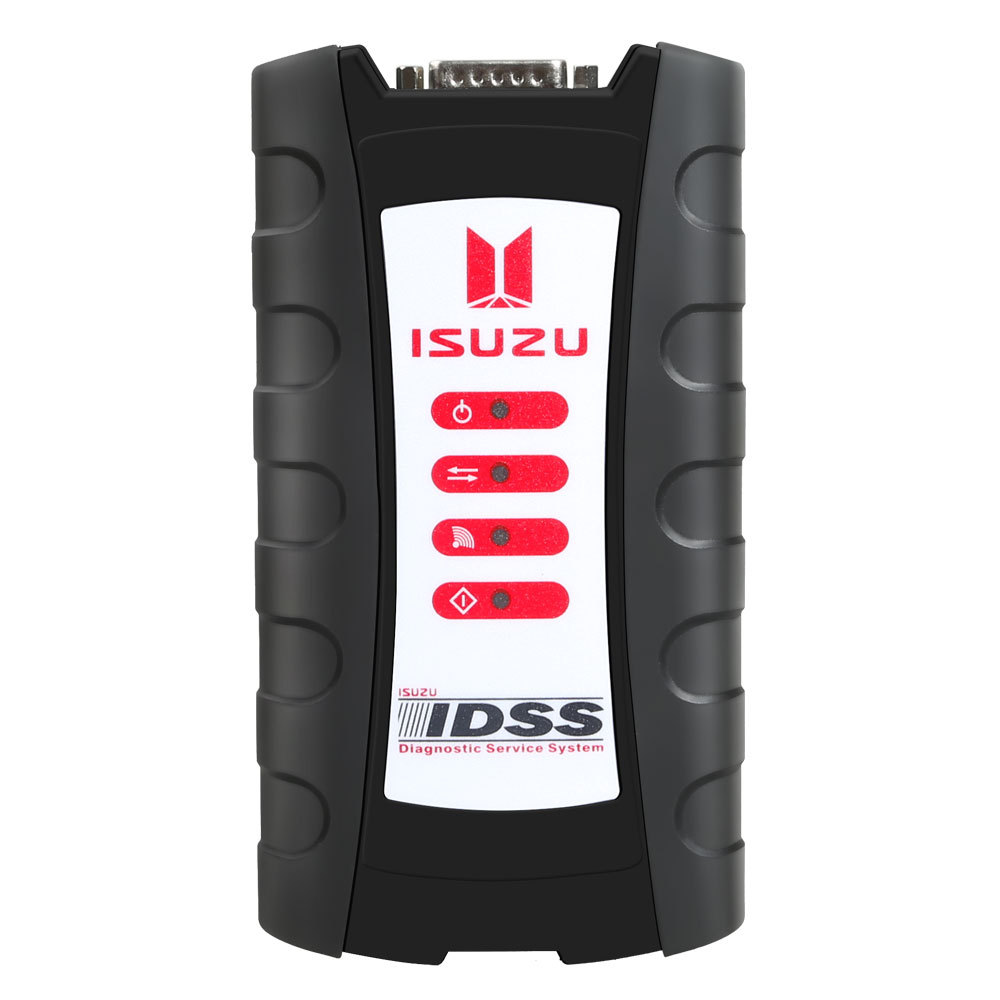

1pc x IDSS USB-Link 1 adapter

1pc x USB cable

1pc x 6-pin/9-pin American cable

1pc x G-IDSS OBD2 cable

1pc xISUZU Cable With DC 2.1 Famale

1pc x CANBUS 3pin
