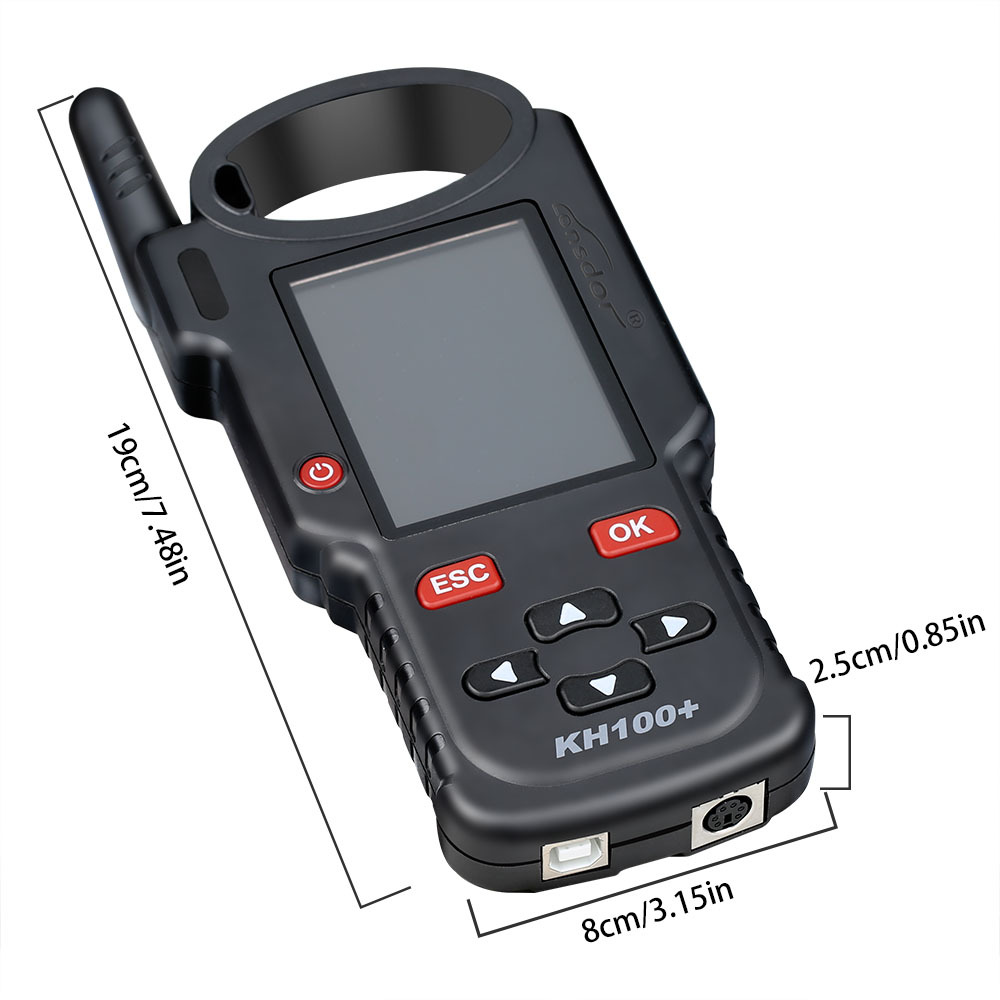

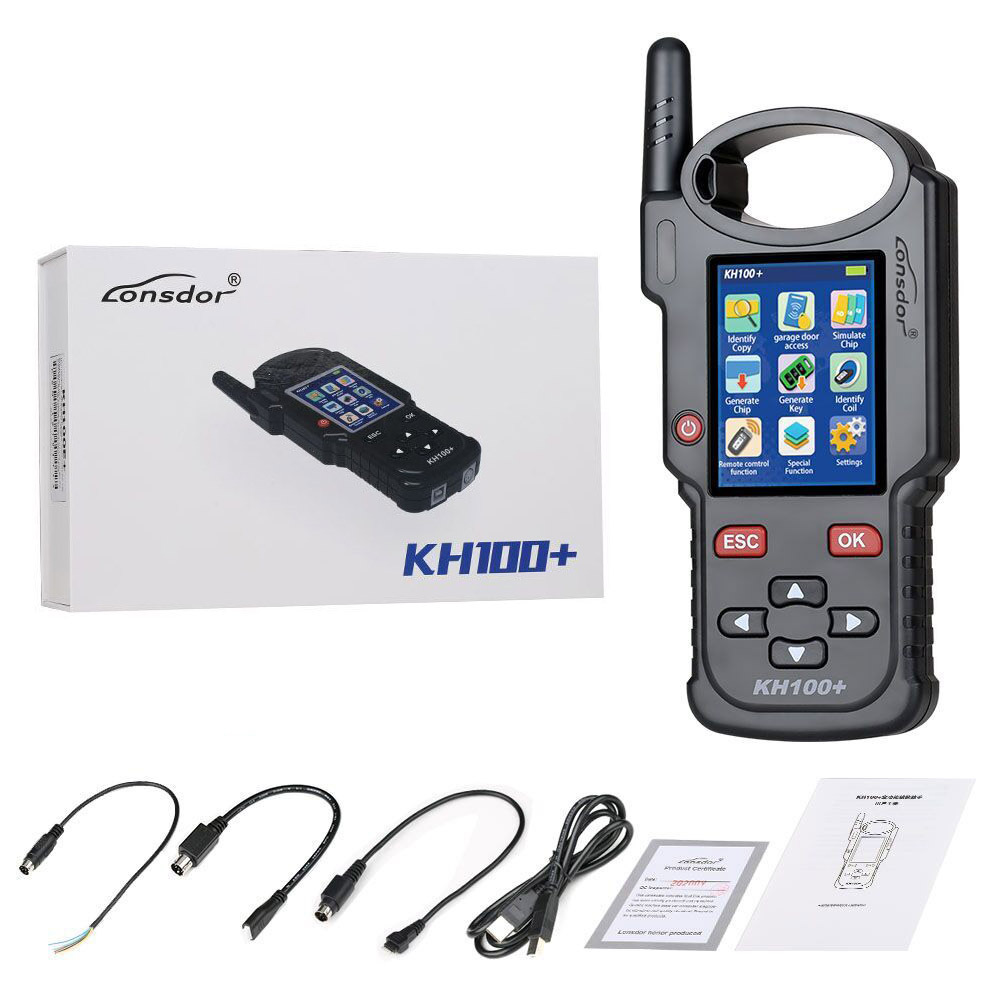

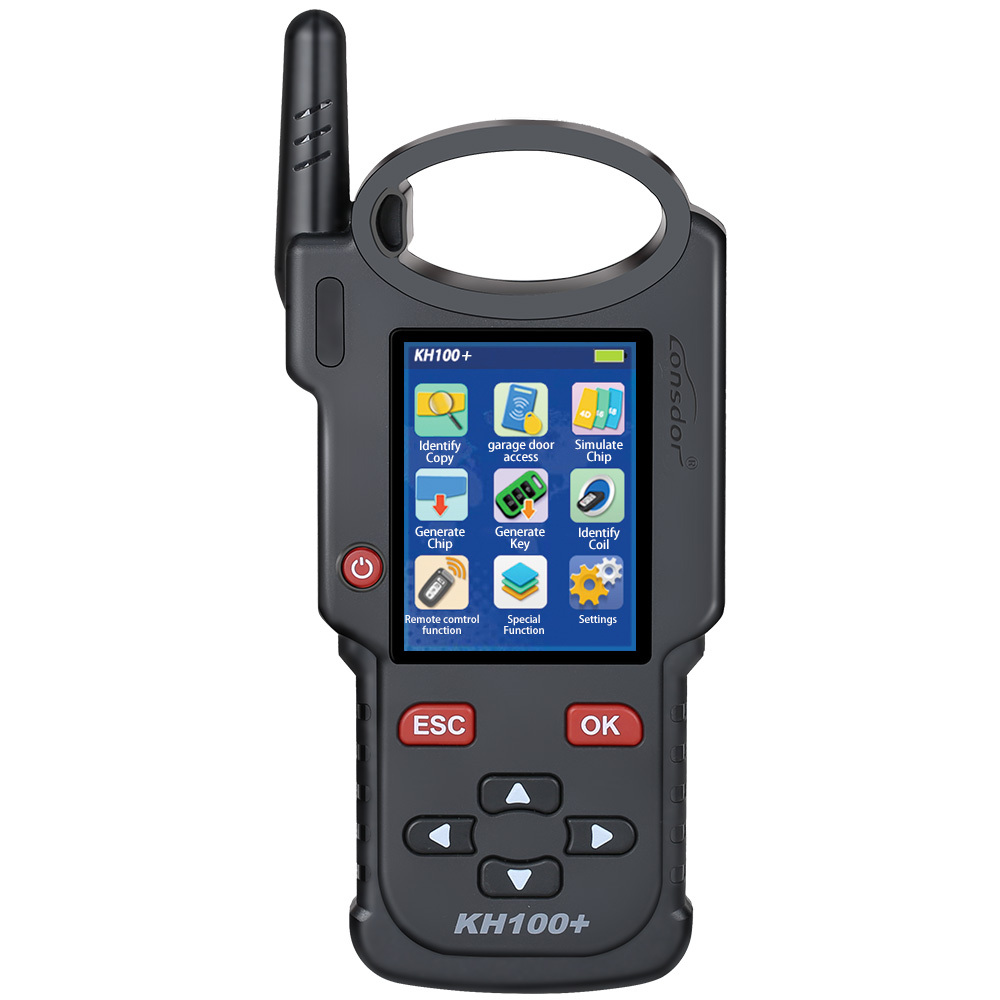

LONSDOR KH100+ Remote Key Programmer Latest Handheld Device Update Version of KH100



1. Modern appearance design, in line with the operating habits of the public.
2. Device system comes with operation instructions, easier for you to use.
3. It covers almost all the functions of the similar products in the market.
4. Built-in super sensor to collect data(over-range data collection).
5. Exclusive support for 8A(H chip) generation.
6. Built-in WIFI module, can connect to network at any time
7. Handy chip holder integrated, 902MHZ supported
8. Toyota 8A Smart Key Direct copy to Add key (Latest Update)
9. Contact me For The Lonsdor KH100+ Vehicle List
10. With Extra   For Toyota AKL License, KH100+ will be able to work on Latest for Toyota & Lexus All Key Lost and Add Key.

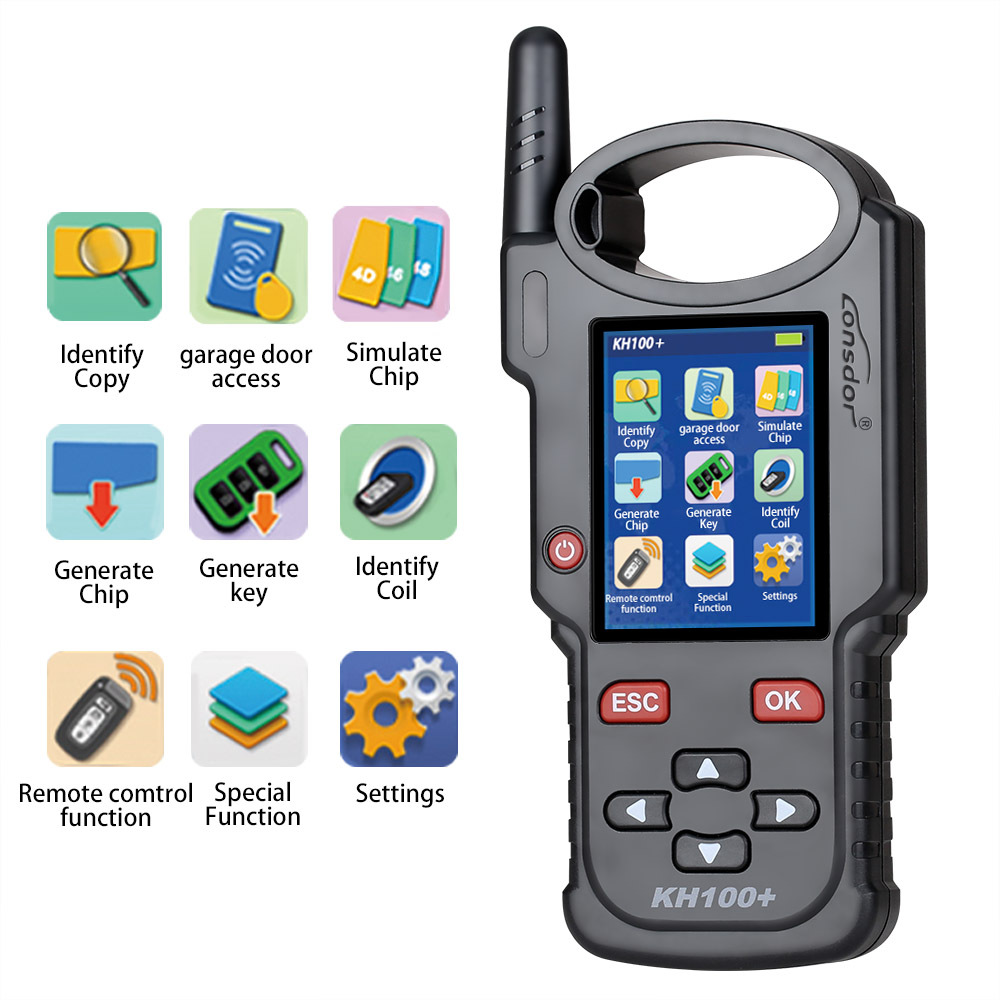

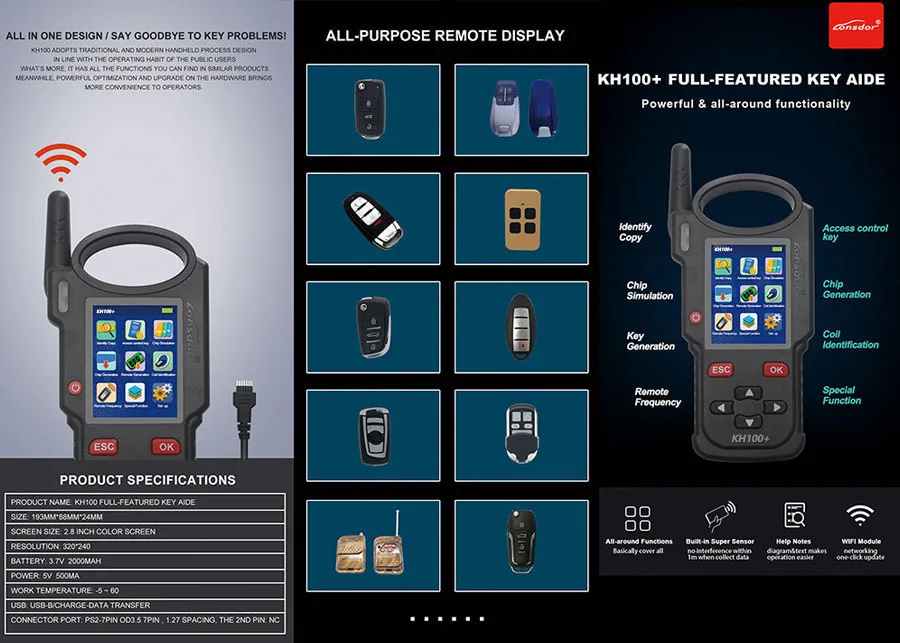

Lonsdor KH100+ Function List:

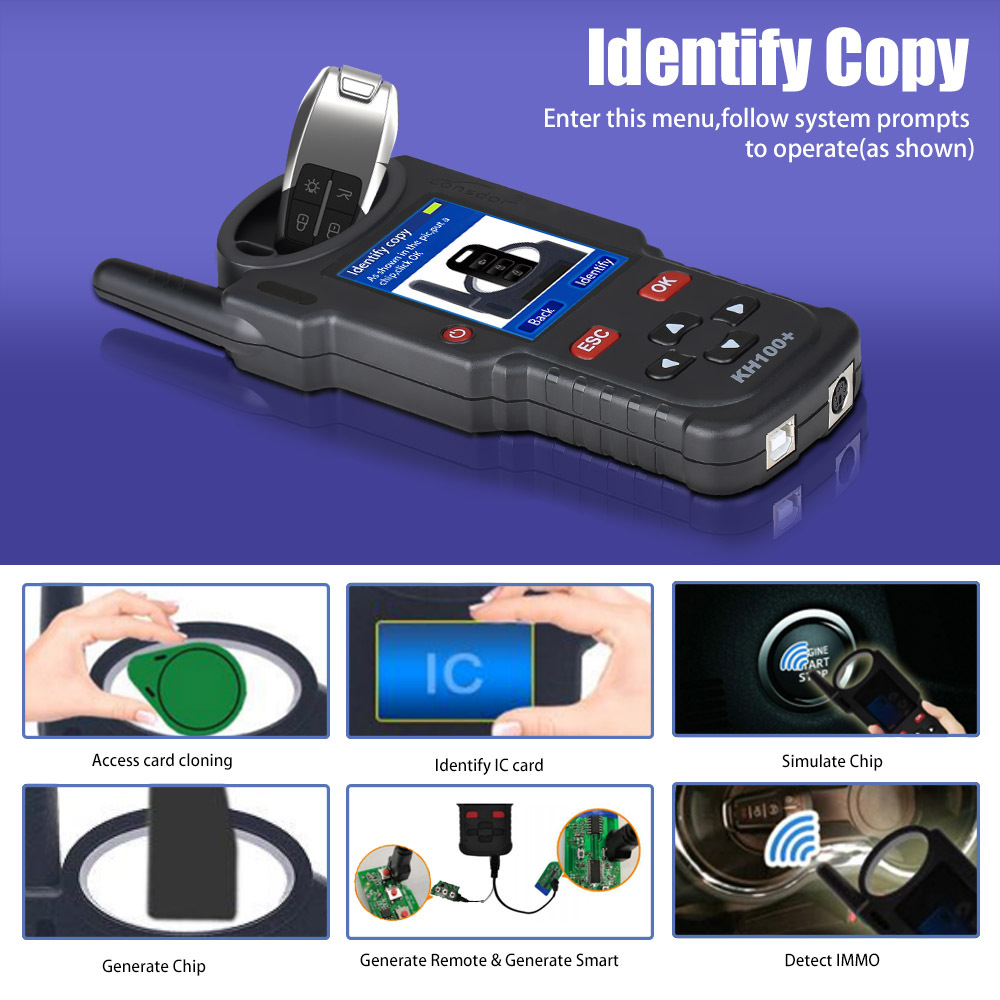

Identify Copy
Chip Simulation
Remote Generation
Remote Frequency
Access Control Key
Chip Generation
Coil Identification
Special Function

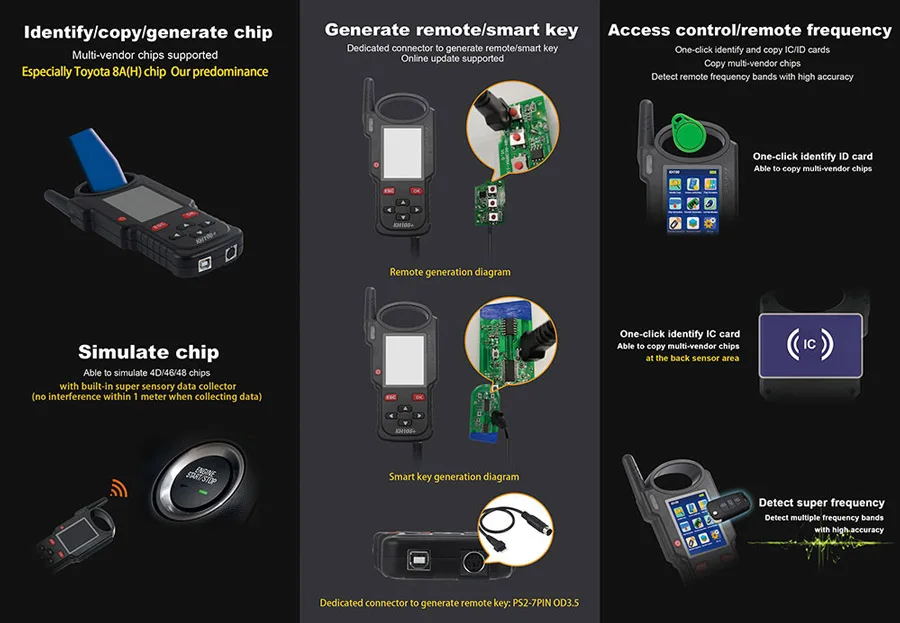

Identify/Copy/Generate Chip:
Multi-vendor chips supported
Especially for Toyota 8A(H) chip Our predominance



Simulate Chip:
Able to simulate 4D/46/48 chips
With built-in super sensory data collector(no interference within 1 meter when collecting data)



Generate Remote/Smart key:

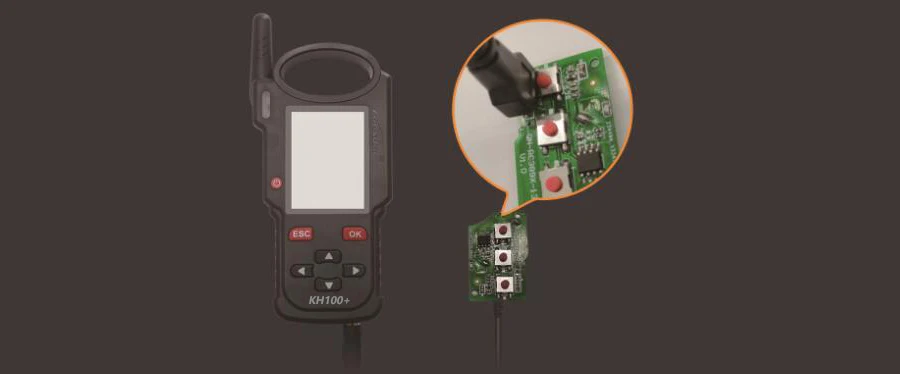

Dedicated connector to generate remote/smart key Online update supported

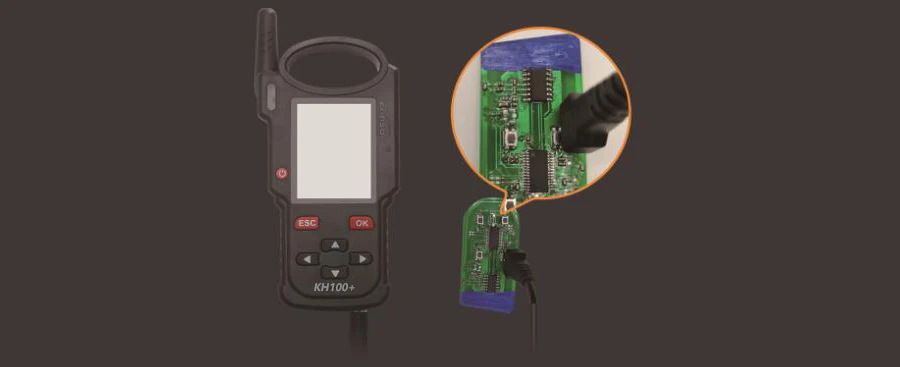

Remote generation diagram



Smart Key Generation Diagram



Dedicated Connector to Generate Remote Key:PS2-7Pin OD3.5



Access Control/Remote Frequency
One-click identify and copy IC/ID cards
Copy multi-vendor chops
Detect remote frequency bands with high accuracy
One click identify ID card,able to copy multi-vendor chps,at the back sensor area




Detect Super Frequency
Detect multiple frequency brands with high accuracy



Identify Coil:

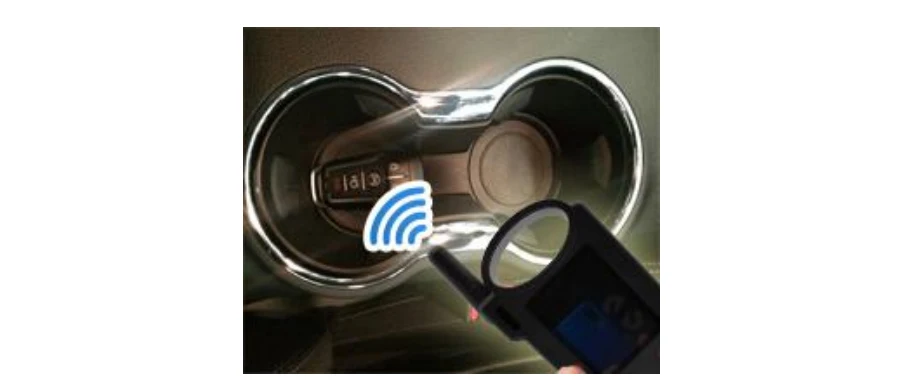

1) Search smart induction area Connect remote key with remote connector, Put KH100+'s antenna close to the pre-determined position. If inductive signal is identified, the device will continuously make sounds, please check if the position is right(as shown below).
2) Detect IMMO Connect remote key with remote connector, Put KH100+'s antenna close to key identification coil, and use key to turn ignition ON. When KH100+ buzzer beeps, it means signal is detected.



Remote Frequency

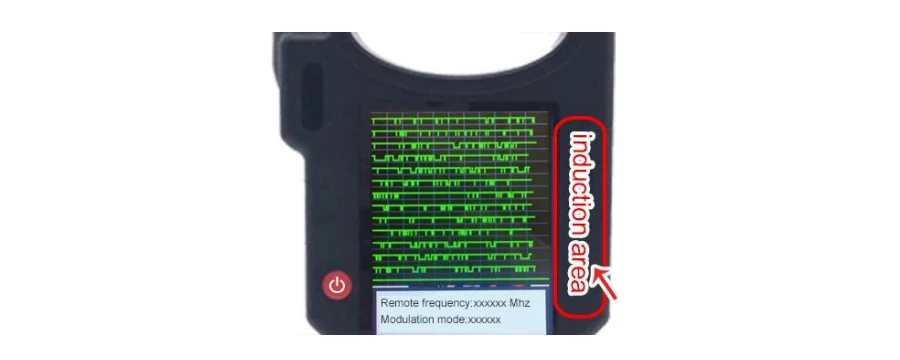

Enter this menu, put remote control at the device's induction area to detect remote frequency.



Lonsdor KH100+ Special Function:

Include: detect infrared signal, unlock for Toyota smart key, More functions, to be continued...

1. Detect Infrared Signal
Put remote control at the infrared signal detection area, press the remote's button once. When the light on KH100's screen is on, it indicates there is infrared signal, otherwise there is no signal (see below pic).

2. FT Smart Key
For Toyota or for Lexus smart keys from Lonsdor, you can perform the following functional operations: read version info, modify key value, unlock and upgrade program and etc. Put in the smart key, click [select] to operate.

3. Unlock for Toyota Smart Key/Detect for Toyota Key Status
Put in the smart key, click OK to operate.

4. Charge Key
For a chargeable key with battery, you can perform this function. Put in the key, click [OK] to operate.
