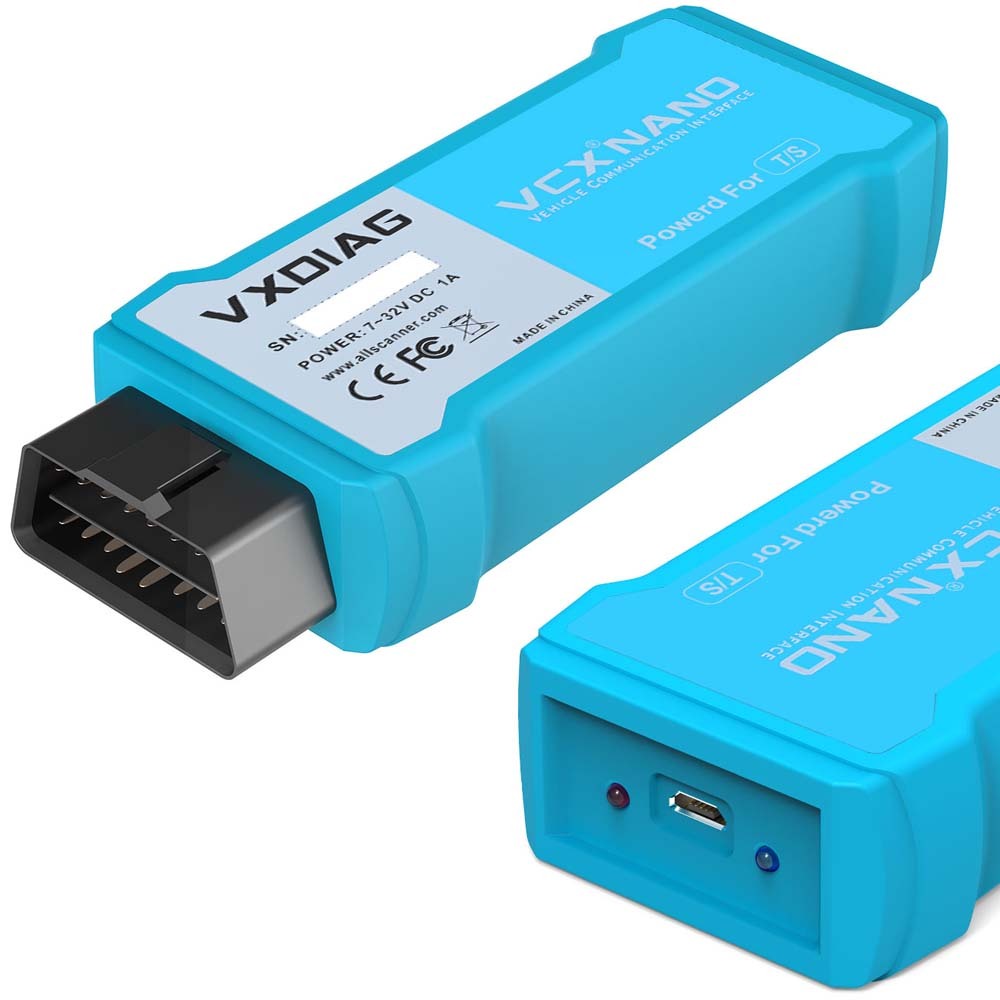

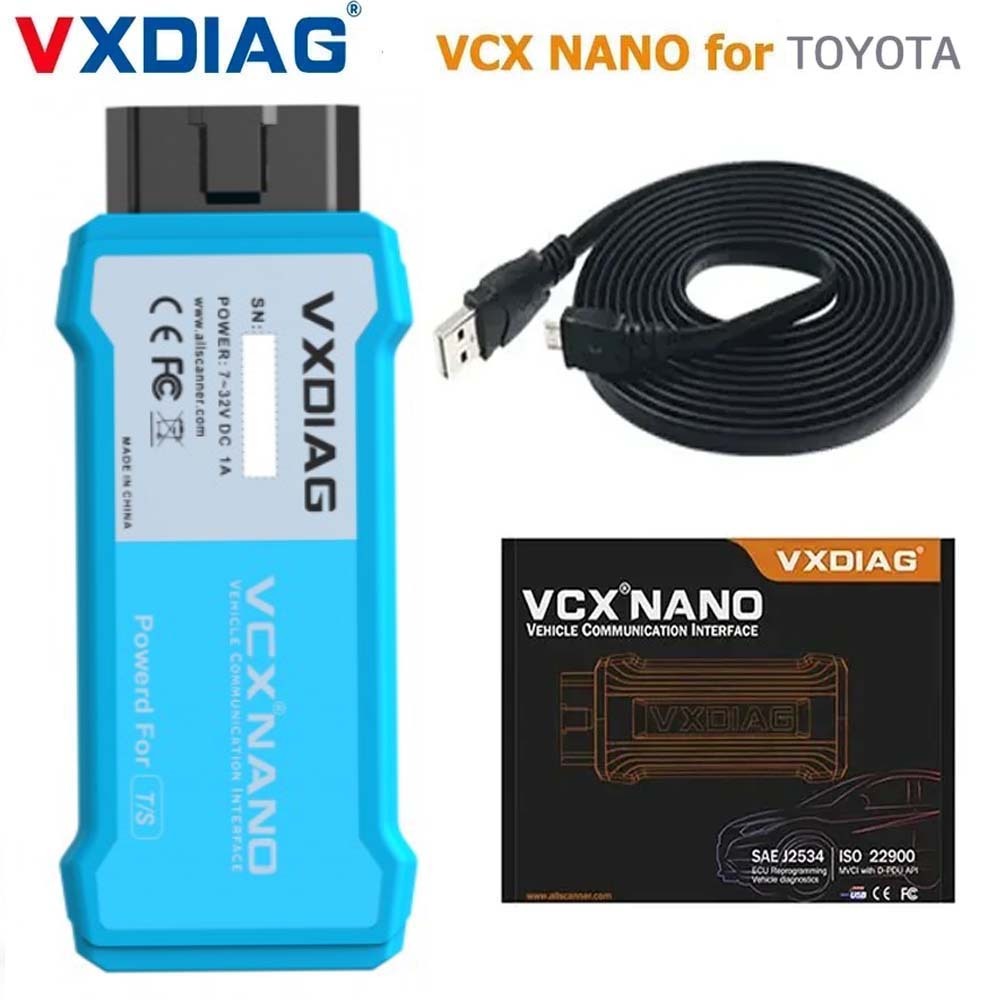

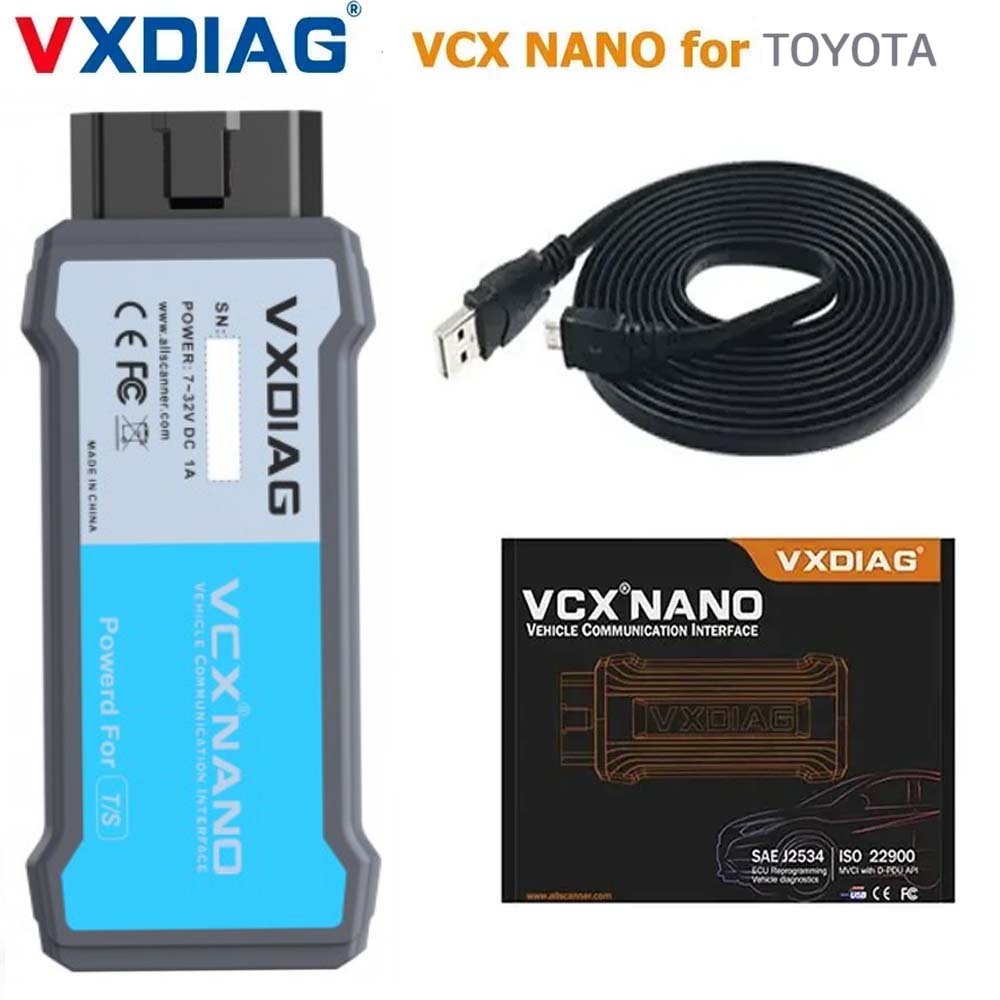

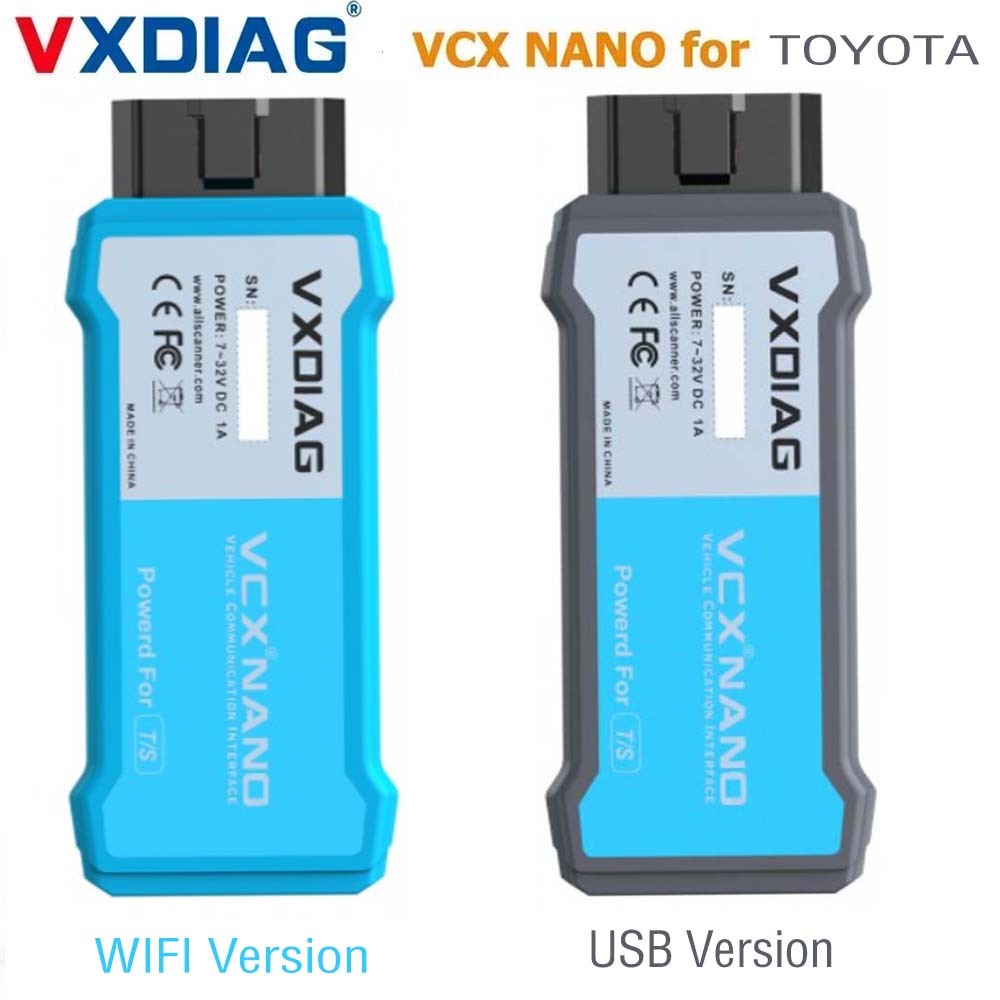

VXDIAG VCX NANO NX400 Diagnostic Tool for TOYOTA TIS Techstream Compatible with SAE J2534 For Lexus

PC to vehicle interface:

• Fully compatible with SAE-J2534-1 & SAE-J2534-2.
• ECU diagnosis and reprogramming, same as the original tool.
• Supports third party and OEM diagnostic application.

PC Interface:

• Support USB2.0 high speed connection.
• Support Bluetooth 2.0 wireless connection.
• PC configuration tool, detect connection and automatically update firmware.

Vehicle Interface:

• Hardware integrated as J-1962 OBD-II connector, connect with vehicles without cable.
• Support the following protocols: ISO9141(K-Line) - ISO14230-2(K-Line) - ISO15765 (CAN) - SAE-J1850 PWM (Ford SCP) - SAE-J1850 VPW(GM Class2) - Single Wire CAN (GMLAN).
• Support 4 CAN, 3 High Speed CAN and Single Wire CAN.
• Programming voltage: 5V~20V FEPs output.
• Support multi-channels work continuously, for example: 2 wire CAN or K-Line work at same time.
• Large memory to increase date throughput, 32KByte can be reached by single transfer.

• VXDIAG connects and reads codes much quicker than a Mini VCI cable.
• Full protocols
• VXDIAG will program TPMS IDs (even on newer Toyotas), mini vci cannot.
• Better hardware design than mini vci and Denso IT2
