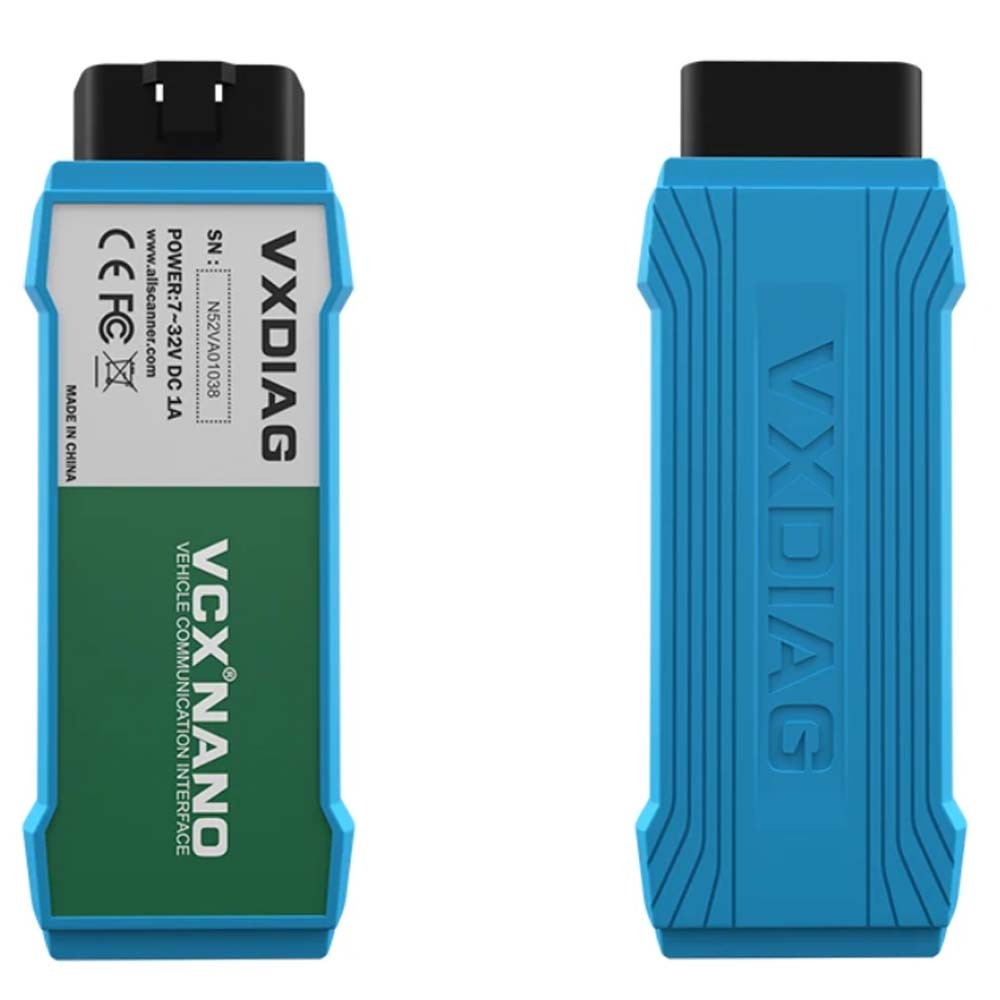

(Wifi Version) VXDIAG VCX NANO NX100 For VW J2534 Programming ECU Coding All System Diagnostic Tool ODIS Replace 5054A 6154A

Top 8 Reason to choose VCX NANO for VW device:

1.VCX NANO support the car year 2005-2021 for VW,including for Audi,for Skoda,for Seat,for Bentley.(99% car model support).

2.Support to do ECU programming/coding,support online programming/offline engineer programming.

3.Support to do full system diagnosis fuction.

4.Support 30+ Multi special function(Airbag reset, EPB/SAS/BMS/TPMS/DPF,etc)

For various scheduled service and maintenance include Maintenance Light Reset, throttle learning, steering angle learning, brake pad reset, tire pressure reset, ABS exhaust,battery matching,gear information learning,injector coding, DPF regeneration,headlight matching, gearbox learning, suspension matching ,Sunroof initialization, A/F adjustment, electronic pump start, release transportation mode, tire modification, door and window calibration, urea reset, NOx reset,start-stop setting, language setting, seat calibration, shielding failure, etc.

5.Support Active test,unlock hidden function,Auto read vin function,etc,work like as original device.

6.Lifetime license,can update the firmware,license in VX-Manager for free.

7.Support Multi-language.

8.Support USB/WIFI connection.

Descriptions:

The VCX NANO scanner support to program ECU and fix software controlled driving performance and emission issues.

Programming:you can download new software version from the online server database and reprogram it to the ECU.

Coding:program adaptive data for car control modules after repair or replacement of vehicle part.

Support to do online programming and coding or you can use the eingeer software to do offline coding,programming

*VCX NANO Support J2534 protocol

--Standard OBD2 automotive diagnostic equipment, support SAE J2534 and ISO 22900 PDU protocols

*Computer windows system requirement

--Support to work on windows 7 and windows 10 system(not support Home system)

The Following Vehicle Bus Systems are supported

K line (ISO9141-2)

High-speed CAN (ISO 11898-2)

Low-speed CAN (ISO 11898-3)

J1850 (SAE J1850)

UDS Protocol

PWM Protocol

Function :

The Diagnostics application enables a data link to the electronic control system of the test vehicle for vehicle diagnosis.The application performs functional tests, retrieves vehicle diagnostic information such as trouble and event codes and live datafor various vehicle control systems, such as ABS, SRS, Engine, Transmission, Brake System, Emission System, Fuel system,Light system, Wiper System etc.

Active Test function:

Active Test The process of sending and retrieving information from a vehicle control module with a device is known as Actuation test or bi-directional control. The main aim of the actuation test function is to request the control module to perform a specific function including system tests, actuator tests, functional tests, inspection tests, reprogramming or reinitialization, thus saving diagnostic time.

Eg: You connect a fuel pressure gauge, cycled the key and cranked the engine but you couldn’t figure out anything regarding the fuel pressure. With the actuation test function of this diagnostic tool, you can send a fuel pump command on instruction and see the proper fuel pressure, figuring out if there is a problem with the fuel pump circuit or pump.

*VCX NANO Full OBD2 Function：

1.Reading Codes;2.Erase Code;3.I/M Readiness Status;4.Read Live Data Stream;

5.View Freeze Frame Data;6.O2 Sensor Test;7.On-Board Monitor Test;8.Read Vehicle Information.

9.DTC lookup;10.EVAP system test.

*AUTO Read VIN:

Quickly to read vehicle vin and run diagnostic on the selected system that allows technicians or repairmen to easily identify vehicle information,

such as manufacturer model,year and place of manufacture, etc.

*Free to update device license and firmware

--The device include the license,you are not need to pay the license again,if the license time was expired,you can directly update it in our driver app 'VX-Manager".

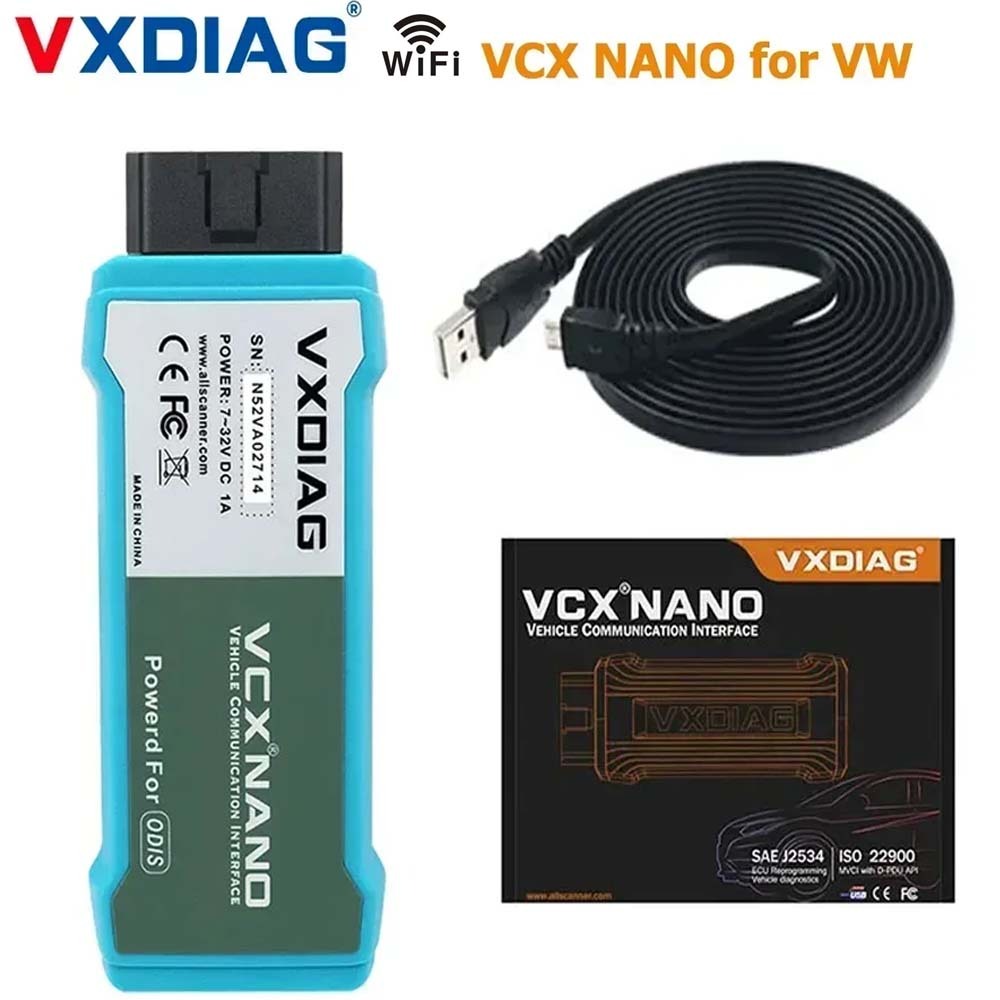

Packing List:

1pc x VXDIAG VCX NANO Main Unit

1pc x USB Cable

1pc x SW
