Xhorse VVDI Key Tool Max Pro With MINI OBD Tool Function Support CAN FD/ Voltage and Leakage Current

SKU: 3502029
0.0 (0)
0 Sold
$415.00 $565.00
1：VVDI Key Tool Max Pro is the upgraded version which combines functions of Key Tool Max and Mini OBD Tool
2：Newly add the CAN FD, Read Voltage and Leakage Current functions
3：BMW CAS3 Key Programming (Comming soon)
4：Partial Toyota Models Key Programming (Comming soon)
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
Add to Favorites (0)
  • Xhorse VVDI Key Tool Max Pro With MINI OBD Tool Function Support CAN FD/ Voltage and Leakage Current
  • Xhorse VVDI Key Tool Max Pro With MINI OBD Tool Function Support CAN FD/ Voltage and Leakage Current
  • Xhorse VVDI Key Tool Max Pro With MINI OBD Tool Function Support CAN FD/ Voltage and Leakage Current
  • Xhorse VVDI Key Tool Max Pro With MINI OBD Tool Function Support CAN FD/ Voltage and Leakage Current
  • Xhorse VVDI Key Tool Max Pro With MINI OBD Tool Function Support CAN FD/ Voltage and Leakage Current
  • Xhorse VVDI Key Tool Max Pro With MINI OBD Tool Function Support CAN FD/ Voltage and Leakage Current
  • Xhorse VVDI Key Tool Max Pro With MINI OBD Tool Function Support CAN FD/ Voltage and Leakage Current
  • Xhorse VVDI Key Tool Max Pro With MINI OBD Tool Function Support CAN FD/ Voltage and Leakage Current
  • Xhorse VVDI Key Tool Max Pro With MINI OBD Tool Function Support CAN FD/ Voltage and Leakage Current
  • Xhorse VVDI Key Tool Max Pro With MINI OBD Tool Function Support CAN FD/ Voltage and Leakage Current
  • Xhorse VVDI Key Tool Max Pro With MINI OBD Tool Function Support CAN FD/ Voltage and Leakage Current
  • Xhorse VVDI Key Tool Max Pro With MINI OBD Tool Function Support CAN FD/ Voltage and Leakage Current
1/1
  • Xhorse VVDI Key Tool Max Pro With MINI OBD Tool Function Support CAN FD/ Voltage and Leakage Current
  • Xhorse VVDI Key Tool Max Pro With MINI OBD Tool Function Support CAN FD/ Voltage and Leakage Current
  • Xhorse VVDI Key Tool Max Pro With MINI OBD Tool Function Support CAN FD/ Voltage and Leakage Current
  • Xhorse VVDI Key Tool Max Pro With MINI OBD Tool Function Support CAN FD/ Voltage and Leakage Current
  • Xhorse VVDI Key Tool Max Pro With MINI OBD Tool Function Support CAN FD/ Voltage and Leakage Current
  • Xhorse VVDI Key Tool Max Pro With MINI OBD Tool Function Support CAN FD/ Voltage and Leakage Current
  • Description
  • Contact :

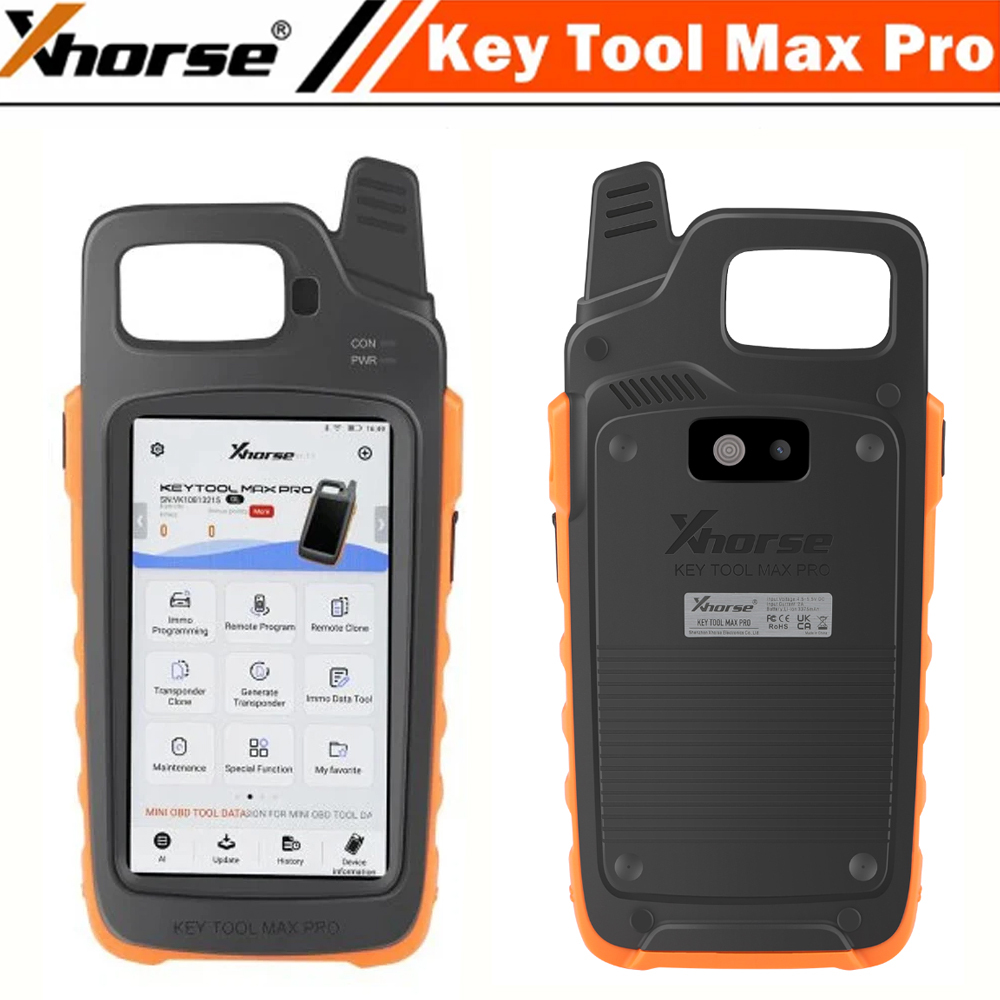

Xhorse VVDI Key Tool Max Pro

Xhorse VVDI KEY TOOL MAX PRO is a professional all-in-one smart device with multi-function, Bluetooth and WIFI communication interface, which is convenient for connecting and controlling Xhorse key cutting machines. It supports various OBD functions such as vehicle diagnosis, IMMO program, throttle program, TPMS, and maintenance light reset.

Highlights:

1. With Built-in OBD module, Combines functions of Key Tool Max and Mini OBD Tool
2. Comes with integrated CAN FD for GM vehicles and All in One
3. Adds battery voltage measurement, and leakage current measurement
4. Supports Toyota H all keys lost with 8A AKL adapter
5. Control Xhorse Condor/Dolphin key cutting machines
6. App Language: English, German, Spanish, Persian, French, Hebrew, Hindi, Indonesian, Italian, Korean, Polish, Portuguese, Russian, Thai, Turkish, Ukrainian, Vietnamese (App language has no limitation. Free to switch now, database language is English)
7. BMW CAS3 Key Programming (Comming soon)
8. Partial Toyota Models Key Programming (Comming soon)

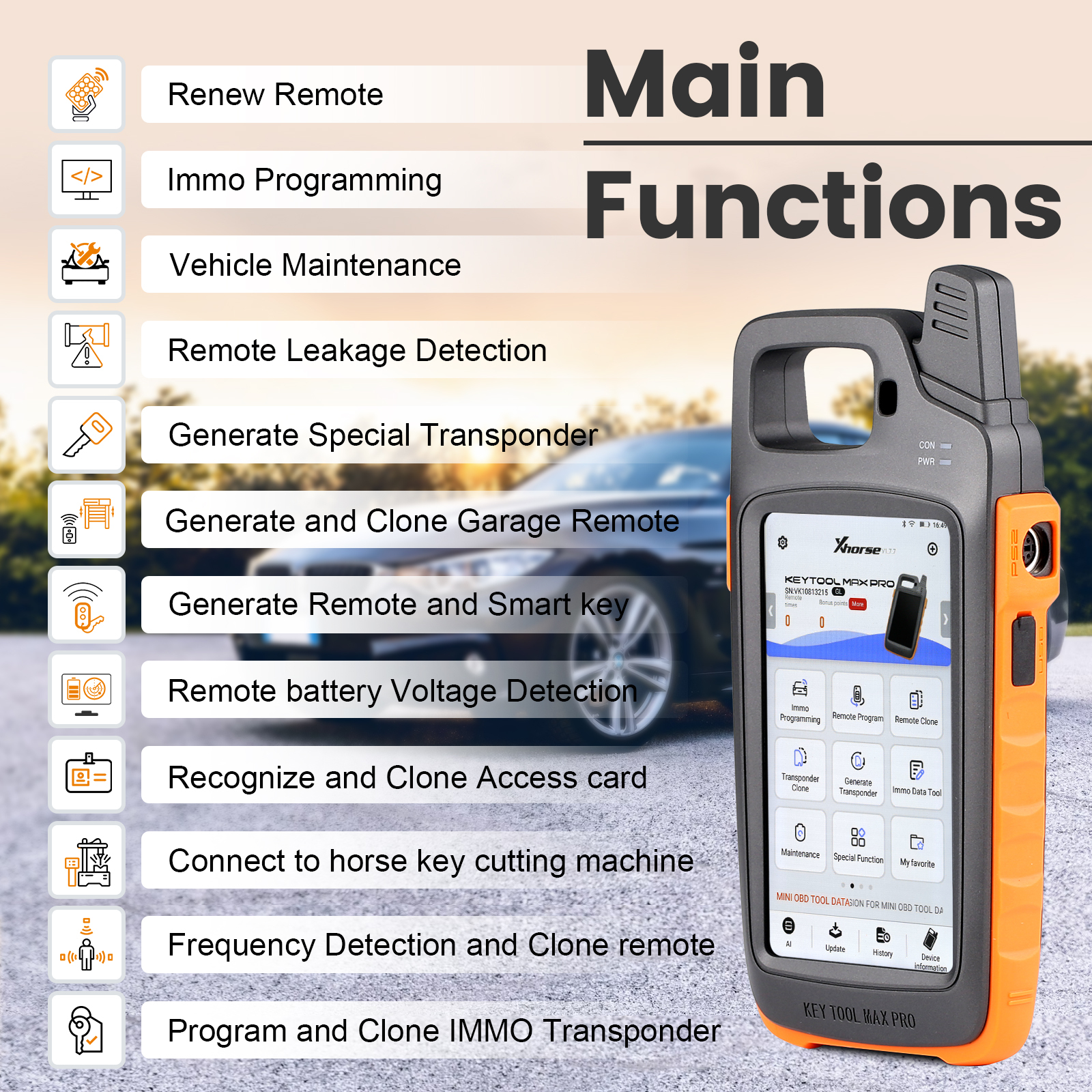

VVDI Key Tool Max Pro Main Functions:

IMMO OBD Match

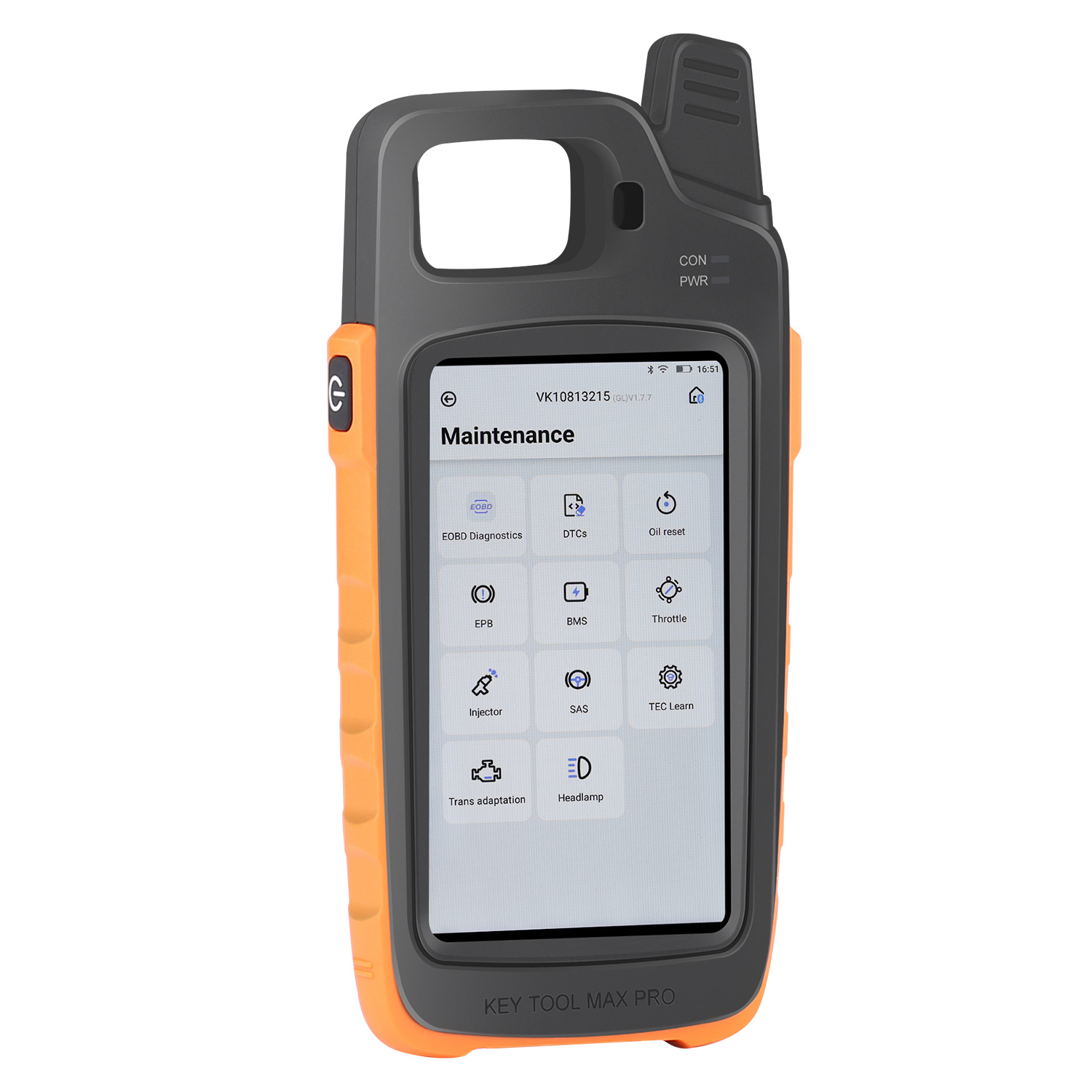

Maintenance
Remote leakage detection
Remote battery voltage detection
Remote key / smart card key generation
Transponder Editing & Cloning
Generate Transponder
Remote Renew
Access Card identification / copy
Generate Garage Remote
Frequency Detection and Copy Remote
Work with DOLPHIN XP-005, XP005L, Condor MINI Plus, MINI Plus II

Xhorse VVDI Key Tool Max Pro With MINI OBD Tool Function

Newly Added OBD Module:
KEY TOOL MAX and MINI OBD TOOL used to be a great combination, enabling users to finish various works via wireless connection. Now, MAX PRO comes with an OBD cable which could connect it to vehicle OBDⅡ port, which means you don't need to purchase MINI OBD TOOL for immo programming and other functions. Meanwhile, wire connection usually can be highly secure and reliable with low risk.

Built-in CAN_FD Module, Expanded Function:

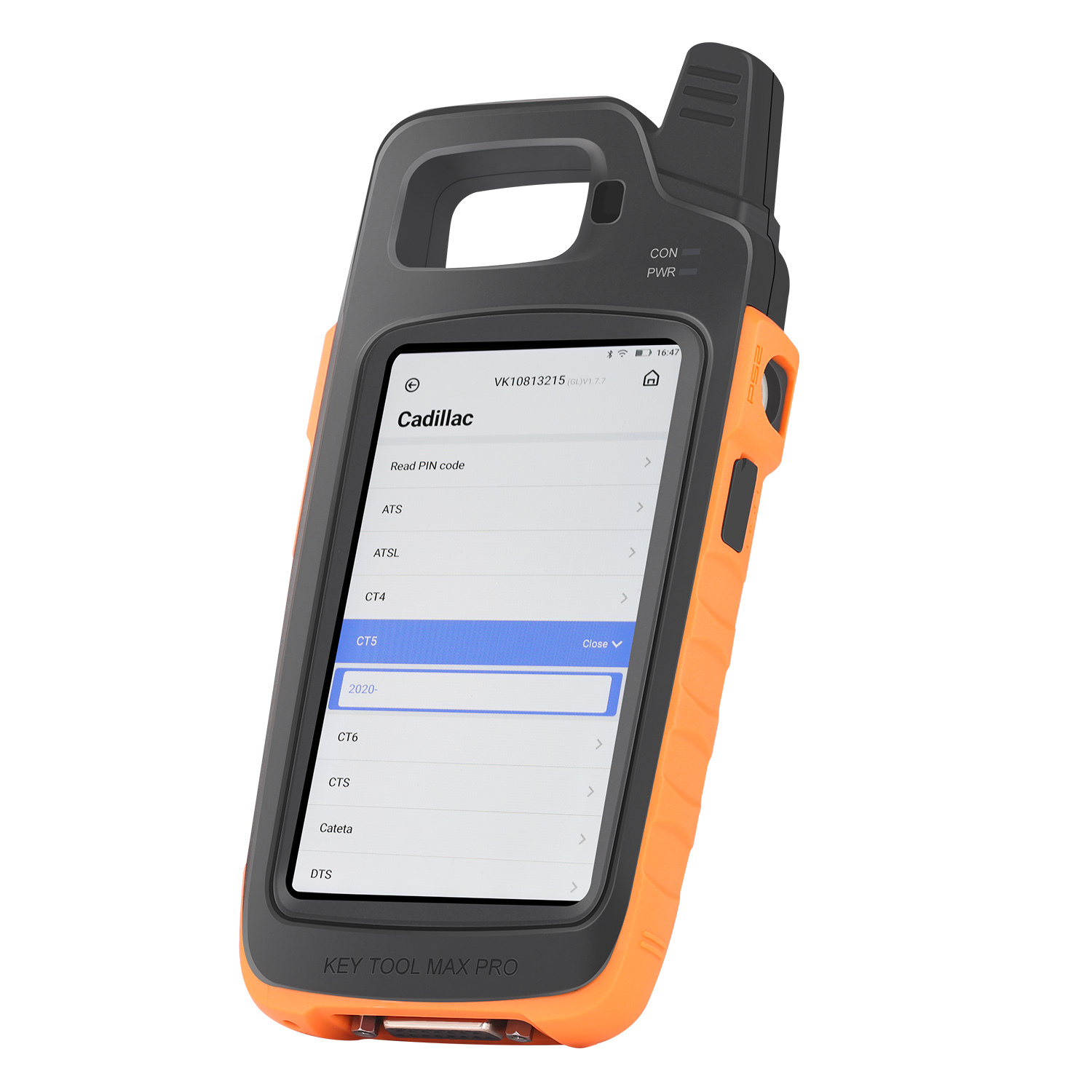

Concerning immo programming, MAX PRO is designed with a CAN_FD module, making it possible to complete immo programming for various CAN_FD models such as Cadillac CT4/CT5, Buick GL8, Encore, etc. Of particular note, Xhorse offers continuous upgrades for free and car models supported keep increasing for your convenience.

Xhorse VVDI Key Tool Max Pro Built-in CAN_FD Module

Read Voltage and Leakage Current:
This function is only used for leakage detection and voltage detection of remote, please do not use it for detection of other products.
Leakage detection: it can detect the current when the remote is leaking, and support current range is 1 microamp~35 milliampere(Do not insert battery into remote)
Voltage detection: it can detect the voltage of the remote battery,and support voltage range is 0V-36V

Xhorse VVDI Key Tool Max Pro Read Voltage and Leakage Current

Key Tool Max Pro Parameter:

Battery capacity: 3375mAh
Battery life>6 hours
Standby time>5 days
Recharging current: 1500mAh
Brightness>400nlts
Screen resolution: 1280*720P
Camera resolution: 800W
WIFI & Bluetooth: 802.11a/ b / g / n / ac & 4.2 BLE

Xhorse Key Tool Max vs. Key Tool Max Pro:

  Key Tool Max Key Tool Max Pro
Hardware
System 4-Core CPU 4-Core CPU
Memory 1G+8G 1G+8G
OBD Module work with Mini OBD Tool √
CANFD Module × √
Charge via OBD ×,  via USB cable √, via OBD/USB cable
Current/Voltage Test Module × √
Software
IMMO Buy Extra Mini OBD Tool √
Cadillac CT4/CT5 CAN_FD × √
Buick GL8/Encore etc. CAN_FD × √
Chevyrolet Cavalier/Trax etc. CAN_FD × √
Maintenance work with Mini OBD Tool √
Generate Remote (flip, remote, smart card, Toyota smart card, garage door etc.) √ √
Remote Clone √ √
Identify/clone Transponder √ √
Generate Transponder √ √
File Make key √ √
Special Function √ √

Xhorse Key Tool Max Pro Comparison

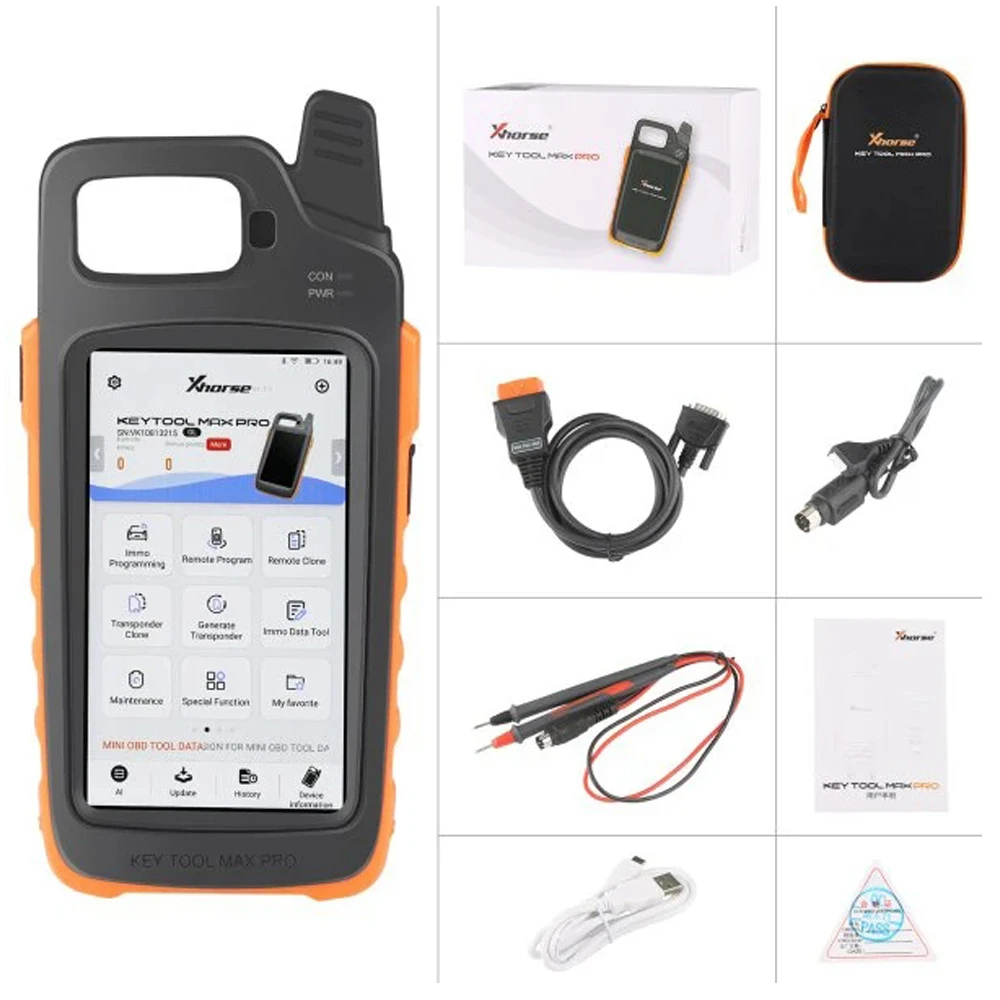

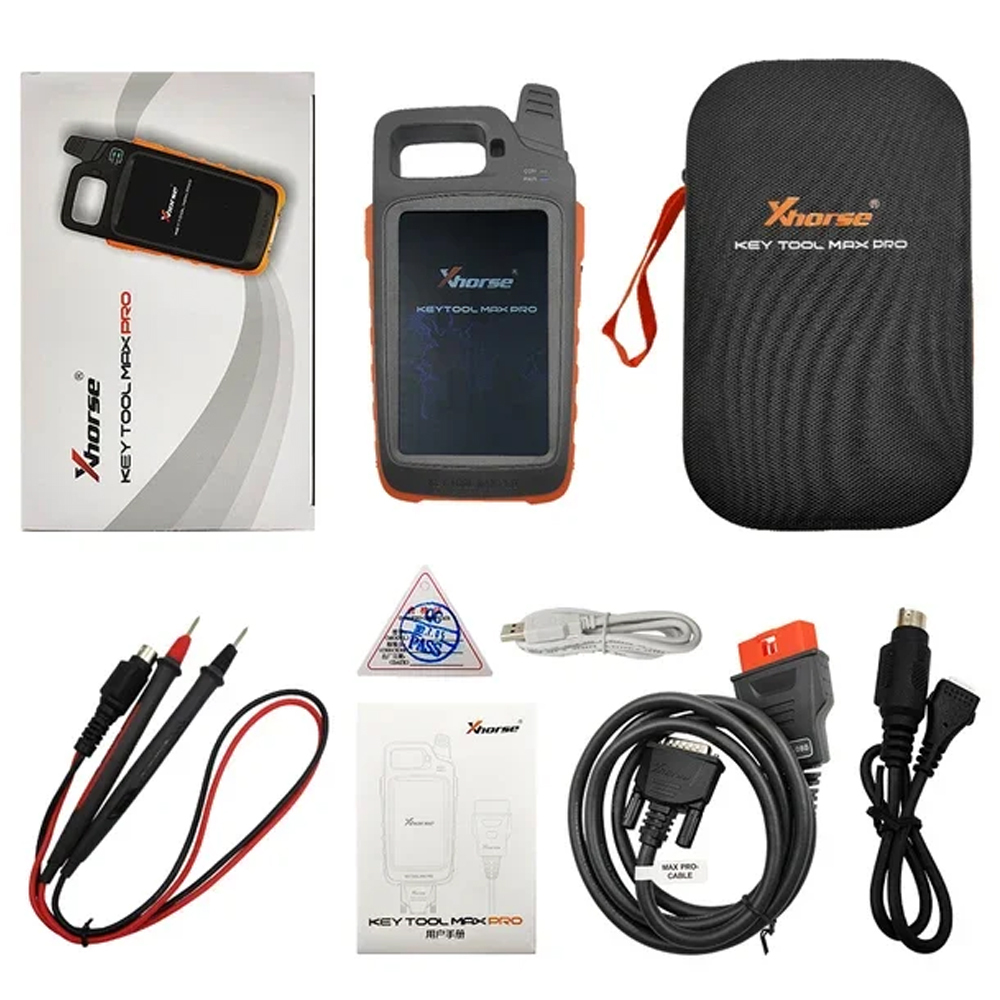

Package List:

1pc x KEY TOOL MAX PRO deivce
1pc x OBD to DB15 cable with light
1pc x Remote programming cable
1pc x Leakage detection cable
1pc x USB cable
1pc x User Manual
