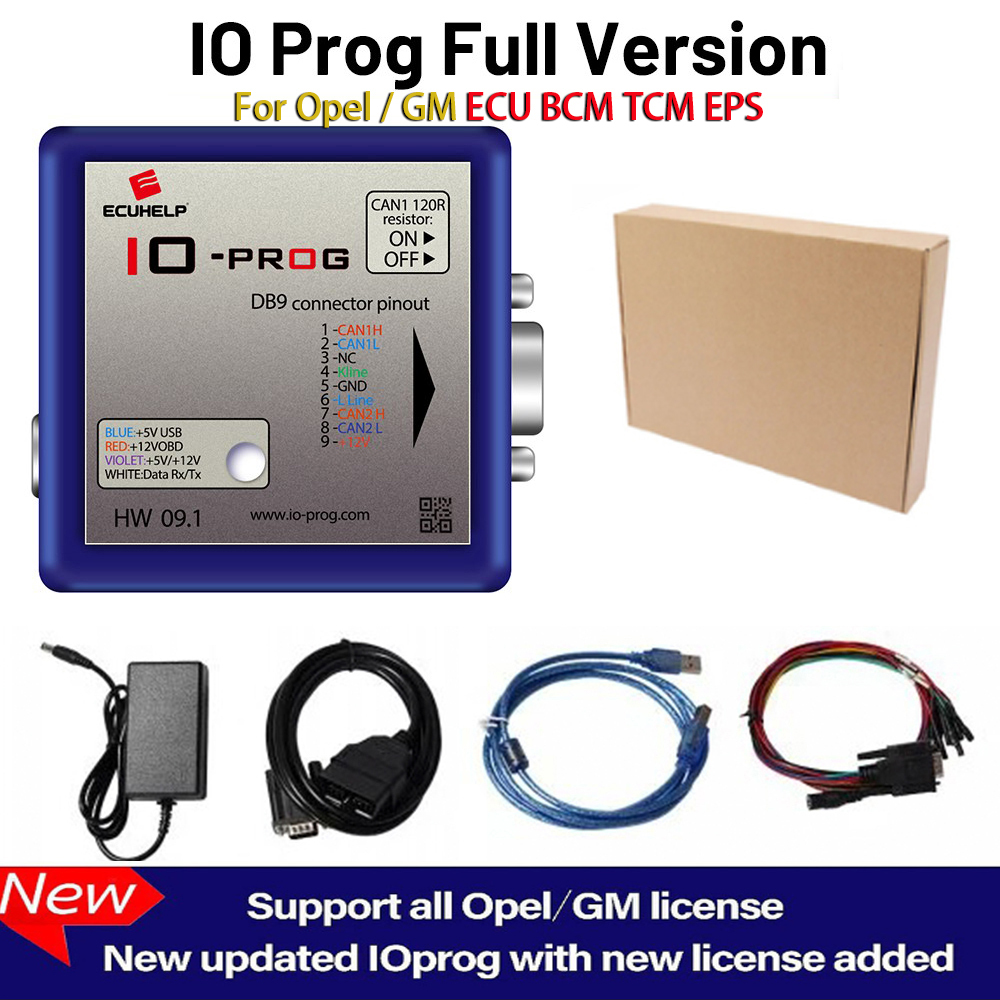

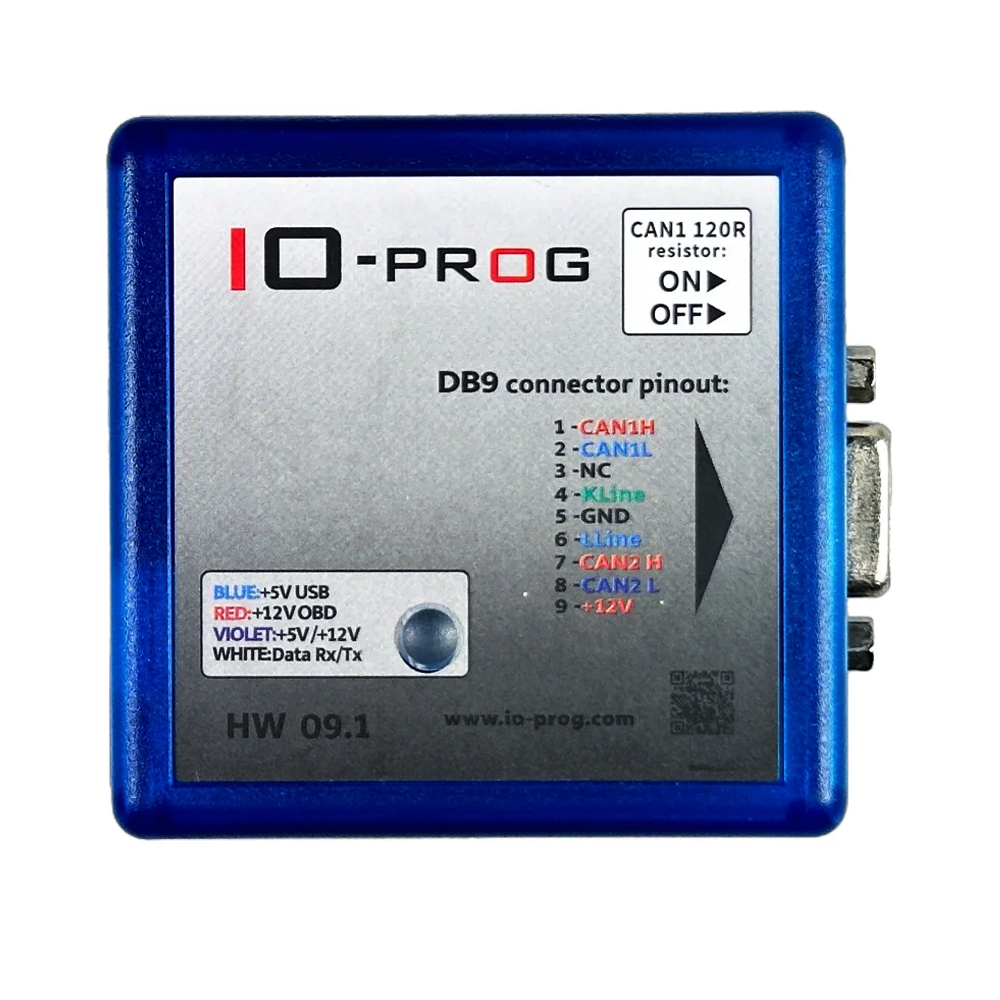

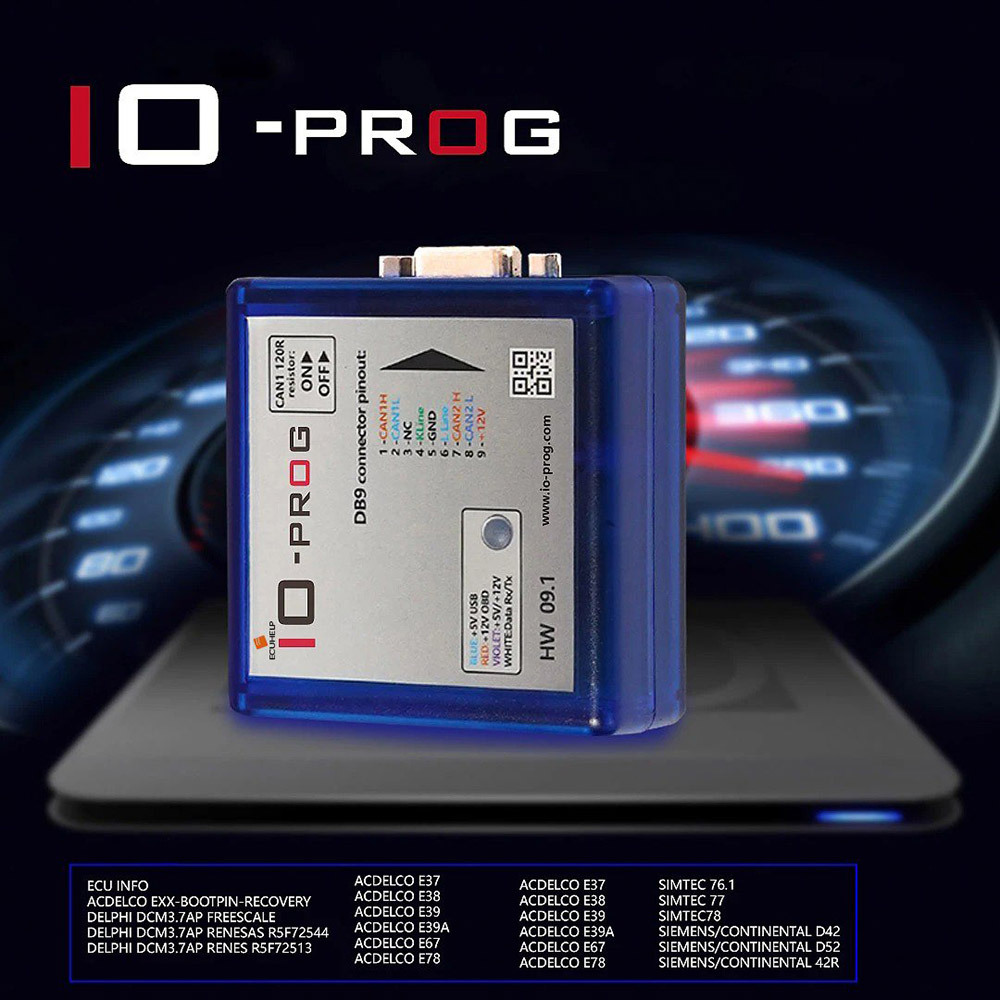

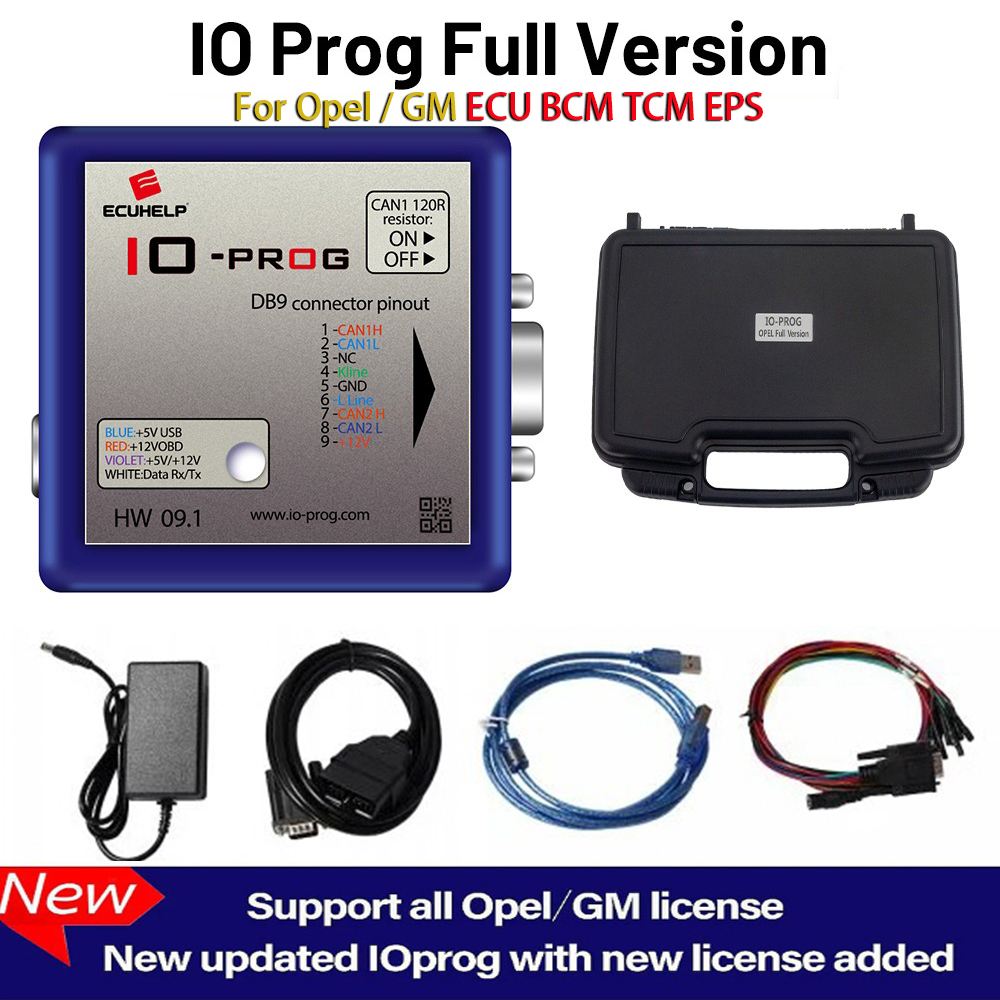

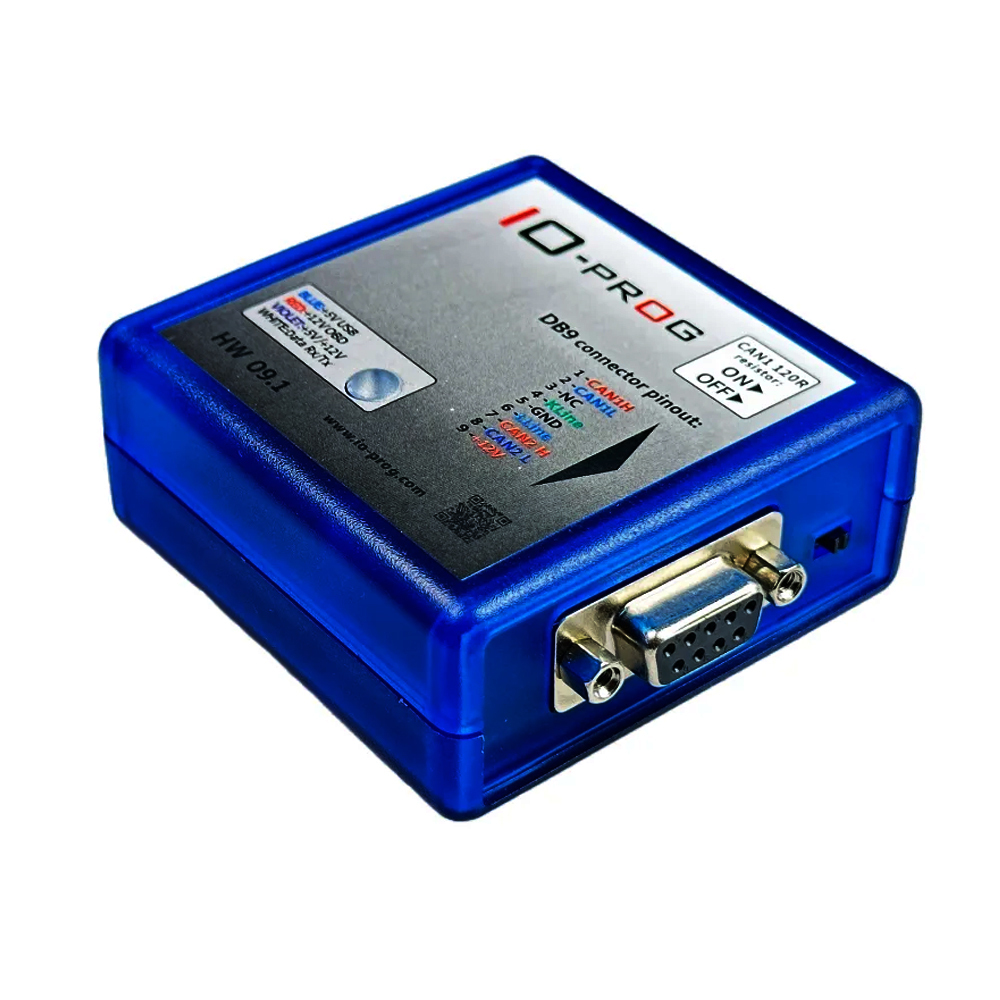

(Full Version) IO-PROG Opel GM ECU BCM EPS TCM Programmer Terminal Multi for by OBD or on Bench

SKU: IOP001-F-C
5 (1)
1 Sold
$269.00 $320.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • I/O Prog:
    Carton Box
    Plastic Box
Quantity:
Add to Favorites (0)
  • (Full Version) IO-PROG Opel GM ECU BCM EPS TCM Programmer Terminal Multi for by OBD or on Bench
  • (Basic Version) IO-PROG IO Prog Opel GM ECU Programmer via OBD / on Bench
  • (Basic Version) IO-PROG IO Prog Opel GM ECU Programmer via OBD / on Bench
  • (Basic Version) IO-PROG IO Prog Opel GM ECU Programmer via OBD / on Bench
  • (Full Version) IO-PROG Opel GM ECU BCM EPS TCM Programmer Terminal Multi for by OBD or on Bench
  • (Full Version) IO-PROG Opel GM ECU BCM EPS TCM Programmer Terminal Multi for by OBD or on Bench
  • (Basic Version) IO-PROG IO Prog Opel GM ECU Programmer via OBD / on Bench
  • (Basic Version) IO-PROG IO Prog Opel GM ECU Programmer via OBD / on Bench
  • (Basic Version) IO-PROG IO Prog Opel GM ECU Programmer via OBD / on Bench
  • (Full Version) IO-PROG Opel GM ECU BCM EPS TCM Programmer Terminal Multi for by OBD or on Bench
1/1
  • (Full Version) IO-PROG Opel GM ECU BCM EPS TCM Programmer Terminal Multi for by OBD or on Bench
  • (Basic Version) IO-PROG IO Prog Opel GM ECU Programmer via OBD / on Bench
  • (Basic Version) IO-PROG IO Prog Opel GM ECU Programmer via OBD / on Bench
  • (Basic Version) IO-PROG IO Prog Opel GM ECU Programmer via OBD / on Bench
  • (Full Version) IO-PROG Opel GM ECU BCM EPS TCM Programmer Terminal Multi for by OBD or on Bench
  • Description
  • Contact :
ECUHELP IO-PROG Opel GM ECU BCM EPS TCM Programmer Terminal Multi for by OBD or on Bench [Full Version]

Note:
Please kindly note that this kit now cannot calculate the seed key for BCM, if necessary calculate the seed key for BCM, see the latest IO prog.

I / O Prog ECU Programmer Advantages:
1. Read and flash the FLASH and EEPROM memory images using the diagnostic connector link.

2. A combination of K-line and CAN interfaces provides ideal software compatibility without acquiring an expensive J2534 device

3. Checksums testing and correction. Safe reading and flashing

4.Software cannot be upgraded online

5.This IO Prog is only available with GM / OPEL license now, not full cars
Software Download Support ( Inbox Software for IO Prog hardware owners）

6. Software can read and write the memory of OPEL / GM ECUs via OBD or on Bench. Also, the software has bootpin recovery mode.

7. The ECU EEPROM EDITOR allows you to extract PINCODE and do other functions with EEPROM DUMP.

8. Software and wiring diagrams is available to be downloaded as well.

9. Read and write  EEPROM and flash of GM Opel ECU ie, E39A, E78 that has 5-bit seed and needs to calculate key before reading that KT200 can't support (it will show Slilent key at the left corner of the software).

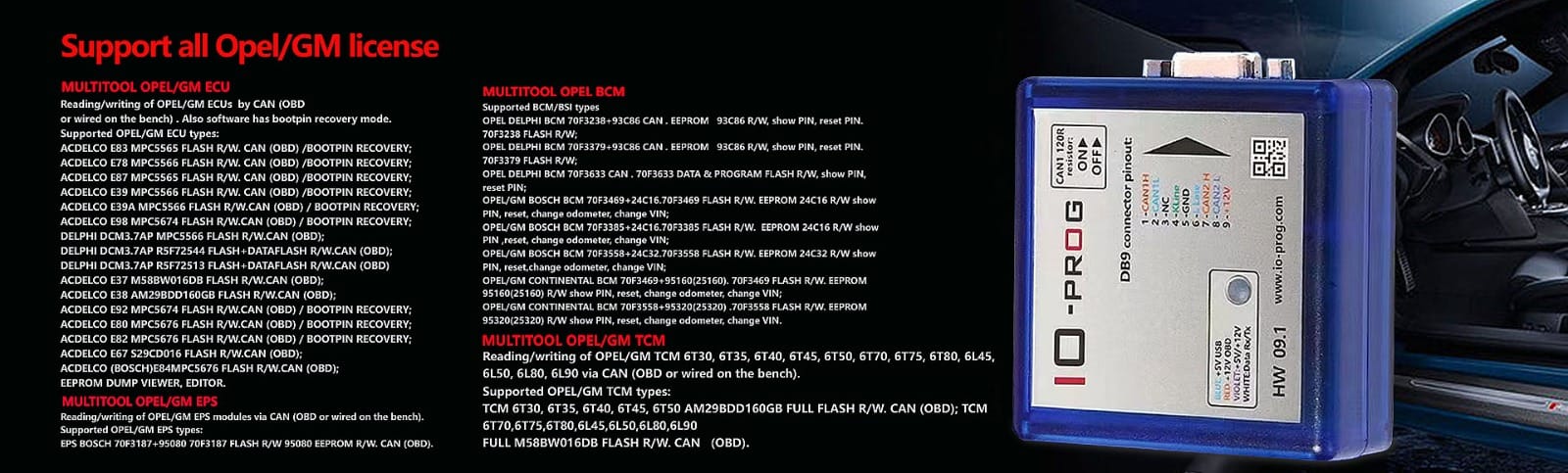

Read this image on io pro support list:


NOTE : MULTITOOL +OPEL / GM ECU LICENSE

IO Prog Opel / GM ECU List
Reading / writing of OPEL / GM ECUs by CAN (OBD or wired on the bench) . Also
software has bootpin recovery mode.
Supported OPEL / GM ECU types
ACDELCO E83 MPC5565 FLASH R/W. CAN (OBD) / BOOTPIN RECOVERY;
ACDELCO E78 MPC5566 FLASH R/W. CAN (OBD) / BOOTPIN RECOVERY;
ACDELCO E87 MPC5565 FLASH R/W. CAN (OBD) / BOOTPIN RECOVERY;
ACDELCO E39 MPC5566 FLASH R/W. CAN (OBD) / BOOTPIN RECOVERY;
ACDELCO E39A MPC5566 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
ACDELCO E98 MPC5674 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
DELPHI DCM3.7AP MPC5566 FLASH R/W.CAN (OBD);
DELPHI DCM3.7AP R5F72544 FLASH + DATAFLASH R/W.CAN (OBD);
DELPHI DCM3.7AP R5F72513 FLASH + DATAFLASH R/W.CAN (OBD);
ACDELCO E37 M58BW016DB FLASH R/W.CAN (OBD);
ACDELCO E38 AM29BDD160GB FLASH R/W.CAN (OBD);
ACDELCO E92 MPC5674 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
ACDELCO E80 MPC5676 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
ACDELCO E82 MPC5676 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
ACDELCO E67 S29CD016 FLASH R/W.CAN (OBD);
ACDELCO (BOSCH) E84 MPC5676 FLASH R/W.CAN (OBD);
EEPROM DUMP VIEWER, EDITOR.

IO Prog Opel BCM List
Reading / writing of OPEL BCM modules made by DELPHI, BOSCH, CONTINENTAL.
Also software extracts PIN CODE rom the EEPROM dump or data flash dump.
Supported BCM / BSI types
OPEL DELPHI BCM 70F3238 + 93C86 CAN . EEPROM 93C86 R/W, show PIN, reset
PIN. 70F3238 FLASH R/W;
OPEL DELPHI BCM 70F3379 + 93C86 CAN . EEPROM 93C86 R/W, show PIN, reset
PIN. 70F3379 FLASH R/W;
OPEL DELPHI BCM 70F3633 CAN . 70F3633 DATA & PROGRAM FLASH R/W, show
PIN, reset PIN;
OPEL / GM BOSCH BCM 70F3469 + 24C16.70F3469 FLASH R/W. EEPROM 24C16 R/W
show PIN, reset, change odometer, change VIN; OPEL / GM BOSCH BCM 70F3385 + 24C16.70F3385 FLASH R/W. EEPROM 24C16
R/W show PIN , reset, change odometer, change VIN;
OPEL / GM BOSCH BCM 70F3558 + 24C32.70F3558 FLASH R/W. EEPROM 24C32
R/W show PIN, reset, change odometer, change VIN;
OPEL / GM CONTINENTAL BCM 70F3469 + 95160(25160). 70F3469 FLASH R/W.
EEPROM 95160(25160) R/W show PIN, reset, change odometer, change VIN;
OPEL / GM CONTINENTAL BCM 70F3558 + 95320(25320) .70F3558 FLASH R/W.
EEPROM 95320(25320) R/W show PIN, reset, change odometer, change VIN.

IO Prog Opel / GM TCM List
Reading / writing of OPEL / GM TCM 6T30, 6T35, 6T40, 6T45, 6T50, 6T70, 6T75, 6T80, 6L45, 6L50, 6L80, 6L90 via CAN (OBD or wired on the bench).
Supported OPEL / GM TCM types:
TCM 6T30, 6T35, 6T40, 6T45, 6T50 AM29BDD160GB FULL FLASH R/W. CAN (OBD);
TCM 6T70, 6T75, 6T80, 6L45, 6L50, 6L80, 6L90 FULL M58BW016DB FLASH R/W. CAN (OBD).

IO Oprog Opel / GM EPS List
Reading / writing of OPEL / GM EPS modules via CAN (OBD or wired on the bench).
Supported OPEL / GM EPS types:
EPS BOSCH 70F3187 + 95080 70F3187 FLASH R/W 95080 EEPROM R/W. CAN (OBD).
