MPM OTG ECU TCU Chip Tuning Programming Tool V5.1.58 Free Activate 1 Time For American Car ECUs All in OBD

No Token, No Credit, No Annual fee, No subscription, No recharge, one-key update

Support American 4, 6, 8, 10 speed

Have all GM protocols, OBD read ECM and TCM. All work in OBD, no need damaos for GM cars.

Also supports tuner like road Scan.

Don't need any Win- OLS, you can direct edit what you want, like s peed, in jection, sp ark angle etc.

Best for American Car ECUs: Buick, Cadillac Chevrolet Chrysler Dongle Ford Hummer Jeep Opel Saab

Software V5.1.58 is attached to the equipment.

VCM Editor: SCAN, LOG, DIAGNOSE. Adjust a multitude of parameters such as spark, fuel, RPM limits, fan temps and speeds, transmission shift points and pressures, exhaust valve control, speedometer settings and many more. Then, write these changes back to the vehicle's various control modules. with calibrations loaded.

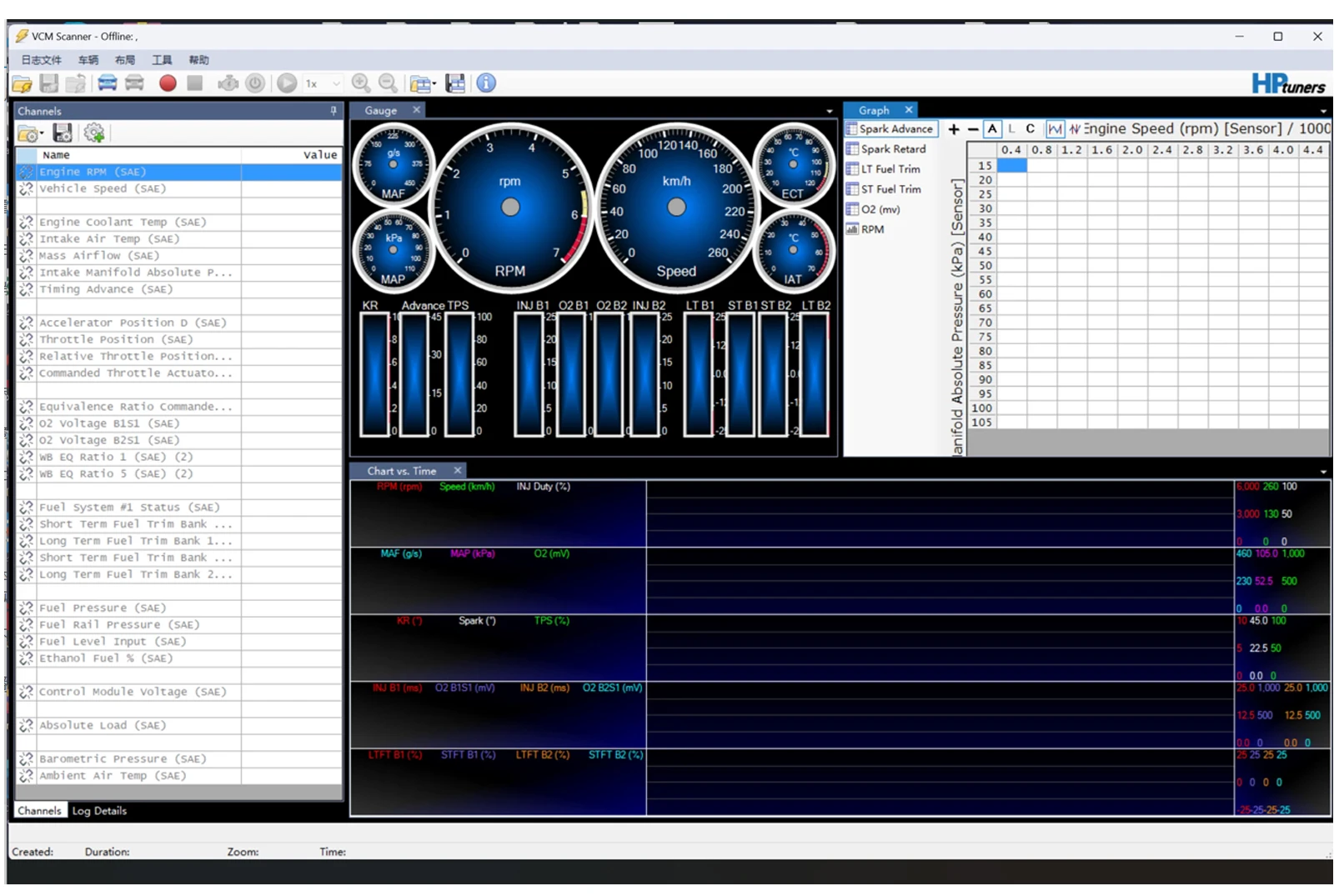

VCM Scanner: READ, EDIT, WRITE. The most feature rich scan tool on the market. View, chart, and log diagnostic data in real time through the vehicle's OBDII port. View vehicle Diagnostic Trouble Codes (DTC's), configure fans, closed loop, gear select, timing, air fuel ratio and more in real time.

VCM Scanner Technical Specifications:

Powerful User Interface Fastest most feature rich OBD scanning tool on the market
Variable Logging/Playback speeds or user controlled using the chart display
Export feature allows you to view/modify your file via Microsoft Excel (.CSV)
Customizable histograms
Histogram user defined filters
Histogram cell count filter
Printable histograms
Customizable gauge display
Customizable chart
Separate gauge and chart displays
Sensor based configuration support
Installs with default histograms loaded
Installs in ready-to-scan configuration
Installs with additional histograms
User defined PIDs with complex function support (Example)
MPIDS (Memory PIDs / Manufacturer Specific Parameters) supported
View and clear DTCs in just seconds (not supported on all vehicles)
View readiness test status (not supported on all vehicles)
Change histogram while scanning
Change charts while scanning
Change gauges while scanning
Change unit value while scanning
Change config files while scanning
Copy/Paste special between VCM Scanner and VCM Editor
User inputted markers and comments
Log comment section to give commentary for future viewing
VCM Controls for multiple vehicle manufactures
Case Learn Feature

VCM EDITOR Technical Specifications:

Faster read time of most VCM/PCMs.
Faster write most VCM/PCMs in 30 seconds.
Automated VCM/PCM recovery protection (not supported on all vehicles)
Seamless recovery after complete power down and communications break(exception for rewrite entire)
Obtain the VCM/PCMs calibration information and ID numbers
Calibration reflash (not supported on all vehicles)
Full reflash
VIN block reflash / change (not supported on all vehicles)
Explorer style navigation
Tab style navigation (tree optional)
Undockable explorer navigator window
Customizable favorites list which allows you to jump to frequently changed parameters (Example)
Countless editable parameters
Open multiple tables at once
Save/Print/Load individual Tables
Individually save tables/maps to txt format
Table smoothing
Table vertical and horizontal specific smoothing
Table interpolating
2D Graph click and drag editing
3D Graph click and drag editing
Simple +/- key cell adjustments
1 click copy/paste of tables
Right click copy/paste/undo
Right click unit adjustments
Compare files with different OS ID's
Tree style compare logs
Easy to use color system when in compare mode
Calibration Details section to list vehicle details
Tree style Change log
Tree style History log
Change log and History log parameter hyperlinks
PCM DTC List
Custom operating systems (VCM Enhancements)
1 Bar Speed Density Enhanced (GM Gen3 V8 and GM 4.3 V6 only)
2 Bar Speed Density (GM Gen3 V8 and GM 4.3 V6 only)
5 Bar Speed Density (GM Gen4 V8 only)
3 Bar Speed Density (GM Gen3 V8 and GM 4.3 V6 only)
Built in unit conversion
Built in calculator

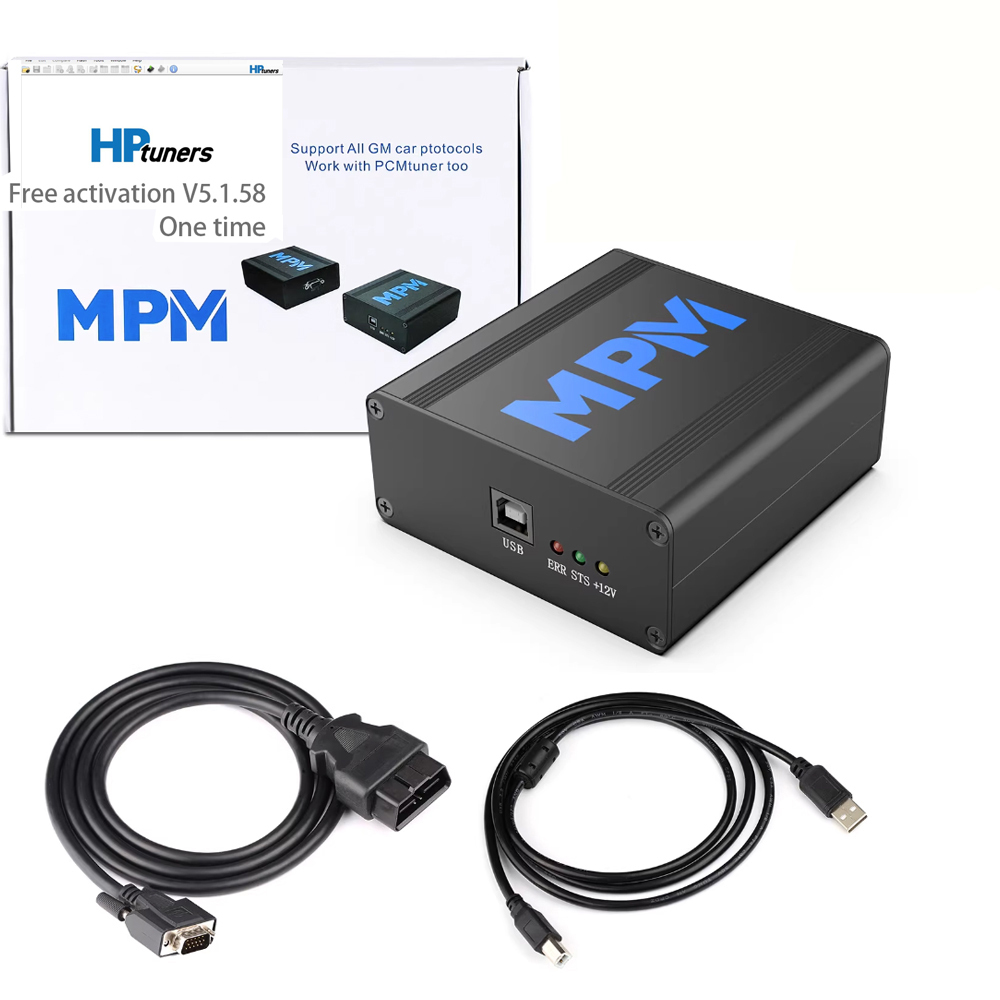

Package including:

1pc x MPM OTG Host
1pc x USB Cable
1pc x OBD Cable
